HP Pavilion 14-bk061st Motherboard Replacement

Written By: Mehrab Daemi
  • Comments: 2
HP Pavilion 14-bk061st Motherboard Replacement

Difficulty

Easy

Steps

15

Time Required

3 minutes

Introduction

Using this guide, you can replace the motherboard in your HP Pavilion 14-bk061st laptop.

The motherboard is the central connection between all the components of a computer. A faulty motherboard can lead to the whole computer failing so it is important to keep good care of all the components in your PC.

  1. FUQCpak5YBTDlmmG
    FUQCpak5YBTDlmmG
    FFZg35mG1p6HjImp

    • Remove the three 5.7 JIS #1 screws from the bottom of the laptop.

    • Remove the two 6.7mm JIS #1 screws from underneath the feet of the laptop close to the exhaust vent.

  2. 4ISZGc3UuVXcGkce

    • Unclip the back plate using a plastic opening tool.

    https://www.youtube.com/watch?v=xXhVP0Un... This video helped a little. It is very hard to pry the left or right side away as the manual says. The video shows lifting from the center of the back. This bows the lid and consequently pulls the left and right sides inward slightly. I enhanced this movement by pushing inward from the right and left sides with my thumb while pulling up from the center of the back panel. This popped open the clasps on the right. Lifting the right back corner and pulling to the right, I got the clasps on the left to disengage. Once the clasps on the left and right towards the back came loose, the rest was far less stubborn.

    Bill Jacobs -

  3. KllZRJQitapvMEbR

    • Carefully remove the back plate from the laptop.

  4. msfWn2cYYAgKfnUI

    • Use the hook end of the Halberd spudger to pull back the clamps holding the card in place.

    • Take care when pulling the second clamp as the card has a tendency to jump out.

  5. qOZVBbEh1aTRwfZe

    • Remove the card by pulling it up and away from the slot.

  6. JpBDYHYUqEKMl2Gm
    JpBDYHYUqEKMl2Gm
    WQsENqXfcJM5XLcM

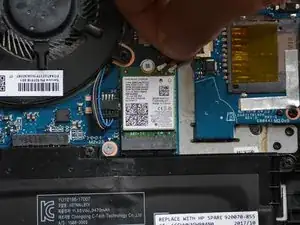

    • Disconnect the two Wi-Fi and Bluetooth antenna wires by gently pulling them away from the board.

  7. kNu2TXnQcw4BJaEo

    • Remove the JIS #1 screw from the WLAN card.

  8. RJHVQYwxlFZvYtIy

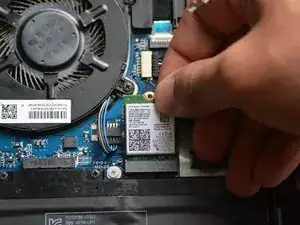

    • Remove the card by pulling it away from the slot.

    Is it possible to put a new WLAN card with better wifi and bluetooth? Or does it need to be the same WLAN card?

    I want to upgrade from bluetooth 4.2 to 5.0.

    Stjepan Ramljak -

  9. I1SgpTKvkDE2XaOp
    I1SgpTKvkDE2XaOp
    RHACGDQGE22R3Qyx

    • Remove the four 2.9mm JIS #1 screws from each of the four corners of the fan.

  10. 2PlenhO5EhOPwrTf

    • Carefully grab the heat sink from any side and lift straight up while trying to avoid touching other components.

    • Avoid bending the heat-pipe at all costs to keep it functional.

  11. GKikburaGHDkQMaK

    • Remove the three 2.9mm JIS #1 screws surrounding the fan.

  12. BdvXUBGdwY2qTLcM
    BdvXUBGdwY2qTLcM
    iHBegABKDdttTJvy

    • Carefully lift up the fan without tugging out the attached wire, and lay it on the motherboard.

    • Use tweezers to gently unplug the power connector wire.

    • Remove the fan from the laptop.

  13. OKWKDXBEshqXS6k5

    • Remove the seven screws from the motherboard using a JIS #1 screwdriver.

  14. Af15ZOQJVmws4hZh
    Af15ZOQJVmws4hZh
    L54UXXG2ETSppLSb

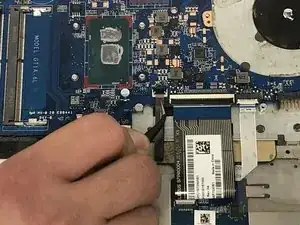

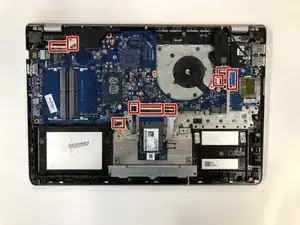

    • Remove the nine cables from the motherboard by carefully lifting the black tab on each connector.

  15. rBTSDqNSkM5vqvNo

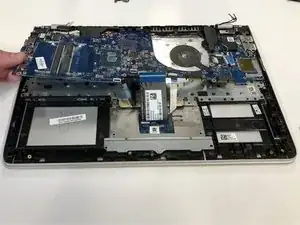

    • Carefully remove the motherboard from the casing.

Conclusion

To reassemble your device, follow these instructions in reverse order.
