HP Pavilion 15-n232nr Hard Drive Replacement

Written By: Trey Stutts
  • Comments: 3
HP Pavilion 15-n232nr Hard Drive Replacement

Difficulty

Moderate

Steps

14

Time Required

10 - 15 minutes

Introduction

This guide will aid in replacement of the hard drive in an HP Pavilion 15-n232nr. The process is fairly time consuming due to keyboard removal. Screwdriver, plastic opener, metal spudger, and tweezers are the necessary tools.

  1. os3b6dxvFSnuveTh
    os3b6dxvFSnuveTh
    bBVtN1fUvGIIYFOt

    • Flip the laptop over.

  2. tyVNQXWtaiFWUANF
    tyVNQXWtaiFWUANF
    WiaoLWDy6Mng2ftT
    sgk6bfF54tCPHDGx

    • Slide the battery locks towards the center of the laptop. The battery will detach automatically.

    • Remove the battery by sliding it away from the laptop housing.

  3. mOTOwHPwcDcHSbse
    mOTOwHPwcDcHSbse
    npI321uk6YjgJ5ZZ

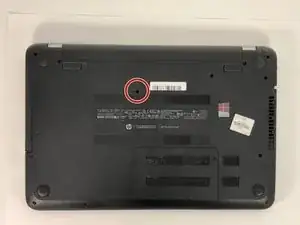

    • Unscrew the 6 mm Phillips #1 screw securing the keyboard.

  4. cXLboynLThtKiZcS
    cXLboynLThtKiZcS
    LNhfLiMAFXuC2Etf

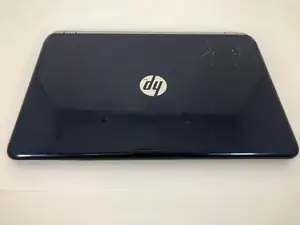

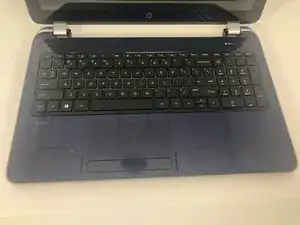

    • Flip the laptop to the front side and open it up.

  5. GUhWhWDTVk5GUJFB
    GUhWhWDTVk5GUJFB
    Yhq1GMGMJwjjAwkV

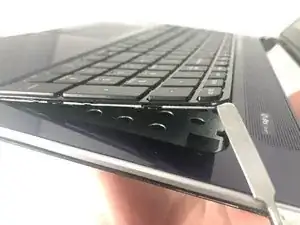

    • Use the metal spudger to release the keyboard from the front panel.

  6. GpueKR4frDqvEXyD
    GpueKR4frDqvEXyD
    gqAgpMu1XboOhbDw
    n2SZ5xNI2sabrlXo

    • Flip the keyboard out and locate the connector.

    • Use the spudger to unhinge the the fastener and remove the connector.

    • Keyboard should be completely detached after this step.

  7. noP2HSVckOg5Wg61
    noP2HSVckOg5Wg61
    5CNkXTr1diMOWoTA

    • Remove the 6 mm Phillips #1 screw securing the optical drive.

  8. iXXPsqkVskt6VneE
    iXXPsqkVskt6VneE
    HQBAiwfnkSgva4ML

    • Use the iFixit opening tool to slide the optical drive away from the laptop housing.

  9. jcKr1yqVtneTAdhW
    jcKr1yqVtneTAdhW
    roHiKjWkaRH6ZmLd

    • The battery and optical drive should be removed at this point in the process.

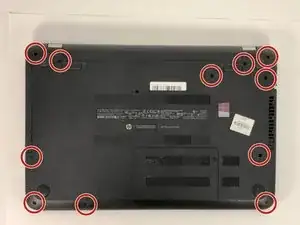

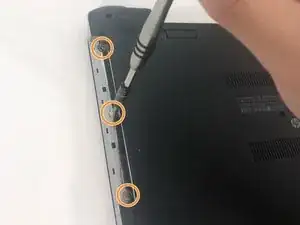

    • Remove the ten 6 mm Phillips #1 screws.

    • Remove the three 1 mm Phillips #000 screws.

    There are also 3 screws that need to be removed under the Wireless/RAM back panel.

    Michael Gravell -

  10. cdjlOOJ1fB6M5LyT
    cdjlOOJ1fB6M5LyT
    fuMdZtK2Uv3klTN6

    • Remove the five 2.5mm Phillips #1 screws.

    • Use the spudger to unhinge the cable connectors. Use tweezers to complete removal.

  11. 4YVluyyGNBgn31Vr
    4YVluyyGNBgn31Vr
    rZXyYeaZVGYPWJay
    yJKinSyYnTV6q2XU

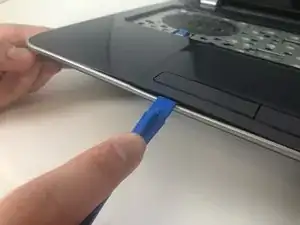

    • Carefully use the iFixit opening tool to release the front panel.

  12. GcTBLwdAit5DMWwr
    GcTBLwdAit5DMWwr
    n2r6LURnFeJFXYtK
    1H6my31M6rIZaV16

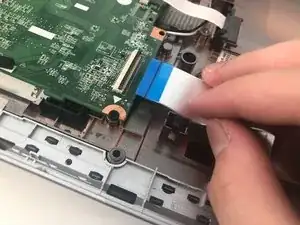

    • Use the spudger to unhinge the daughterboard connector.

    • Remove daughterboard connector.

  13. vDTPKGDojyHn2YlL

    • Remove the 2.5 mm Phillips #1 screw and remove the daughterboard

  14. FOsWRO1H2TPCFTab
    FOsWRO1H2TPCFTab
    IrChVxXbmaJLOk15
    TxMw2kCLeuPv3Hgc

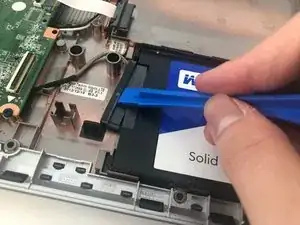

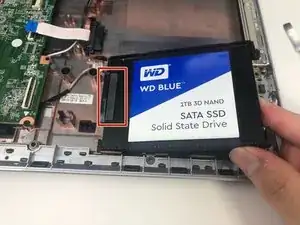

    • Use the iFixit opening tool to remove the hard drive connector.

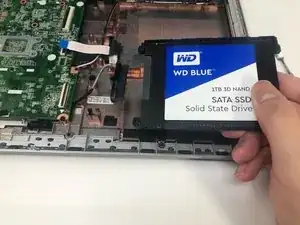

    • Remove the hard drive by lifting the right side and pulling it out.

Conclusion

To reassemble your device, follow these instructions in reverse order.
