HP Pavilion 15-n232nr RAM Replacement

Written By: Dalton Bowen
  • Comments: 1
HP Pavilion 15-n232nr RAM Replacement

Difficulty

Moderate

Steps

5

Time Required

5 - 10 minutes

Introduction

This guide will include the steps required in removing the RAM in the HP Pavilion 15-n232nr. This process will require the following tools: screwdriver and iFixit opening tools. This process does not require much expertise, but is rather tedious.

  1. os3b6dxvFSnuveTh
    os3b6dxvFSnuveTh
    bBVtN1fUvGIIYFOt

    • Flip the laptop over.

  2. tyVNQXWtaiFWUANF
    tyVNQXWtaiFWUANF
    WiaoLWDy6Mng2ftT
    sgk6bfF54tCPHDGx

    • Slide the battery locks towards the center of the laptop. The battery will detach automatically.

    • Remove the battery by sliding it away from the laptop housing.

  3. WnKx6XGVXeZvQqll
    WnKx6XGVXeZvQqll
    eJCFltIjsZPBopwg

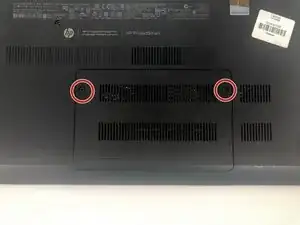

    • Loosen the two 6 mm Phillips #1 screws on the back panel.

    • These screws do not detach from back panel.

  4. TiQQ5RnxjWlGbuka
    TiQQ5RnxjWlGbuka
    2dYuQql1tirBvuZx

    • Use the iFixit opening tool to remove the back panel.

  5. OZehHylXMBvC5O5K
    OZehHylXMBvC5O5K
    nEEKXGjOhhx3NpKr

    • Release the clips securing the RAM by slightly bending them until the RAM is free.

    Remove the Phillips #1 screw form the wireless device

    Helmut Hofmann -

Conclusion

To reassemble your device, follow these instructions in reverse order.
