HP Pavilion 17-g119dx Hard Drive Replacement

Written By: Kathryn

Comments: 12

HP Pavilion 17-g119dx Hard Drive Replacement

Difficulty

Moderate

Steps

Time Required

15 - 20 minutes

Introduction

The hard drive can cause the device to run slow. In this guide, you will learn how to replace your HP Pavilion 17-g119dx laptop's hard drive. To perform the replacement, you will need a Phillips head screwdriver and a plastic opening tool to pop open the keyboard.

Tools

Parts

Step 1

Close your laptop and turn it over so that the bottom is facing up.

Stap 1 gedaan

Willem Zweedyk -

Step 2

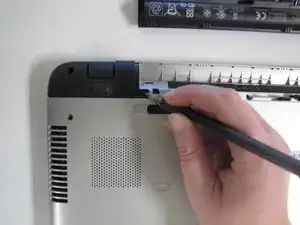

In the upper left hand corner, slide the bar with the lock icon to the right. This will unlock the battery.

Stap twee gedaan

Willem Zweedyk -

Step 3

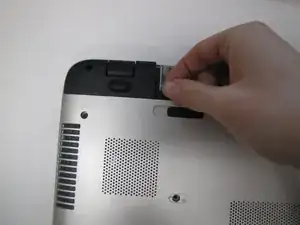

Slide the bar with the battery icon, on the right of your laptop, to the left to release the battery.

Stap drie gedaan

Willem Zweedyk -

Step 4

Grab the battery and remove it from the laptop.

Stap 4 gedaan batterij verwijderd

Willem Zweedyk -

Step 5

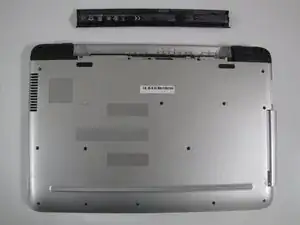

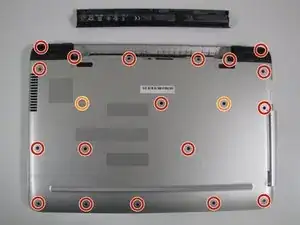

Remove the twenty 6.5mm screws using the Phillips #00 screwdriver.
Two of these 6.5mm screws are covered by a silver sticker. Remove the sticker by gently scraping your finger nail under the sticker and then remove the screws.

20 schroeven verwijderd vastgeplakt op blauw kleedje plaatsen gemarkeerd op de laptop en op het kleed en een foto gemaakt twee stuks.

Willem Zweedyk -

Step 6

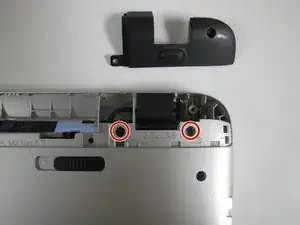

Remove the black corner covers on either side of the battery to reveal four additional 6.5mm Phillips #00 screws.

Twee schroeven van elk scharnier verwijderd gedaan

Willem Zweedyk -

Step 7

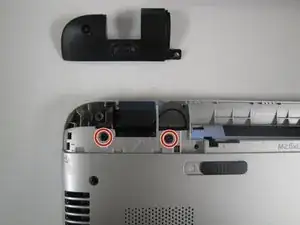

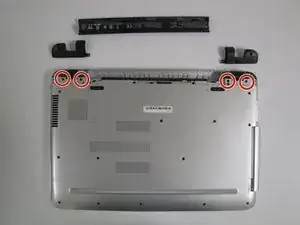

Remove the four 6.5mm Phillips #00 screws that were underneath the black corner covers.

Stap 7 gedaan twee schroeven verwijderd

Willem Zweedyk -

Step 8

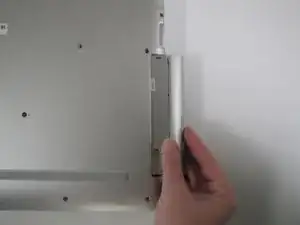

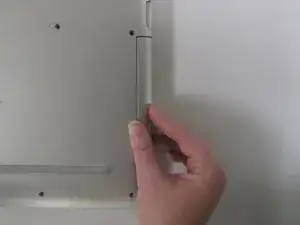

On the right-hand corner of the laptop, remove the CD-ROM by pressing the small button on the side. Pull it out of the laptop, and set it to the side.

The button to press can be accessed by a small paperclip through the tiny round hole — not the rectangular normal release button. (The picture shows the rectangular button being pressed.)

There is some resistance to pulling the CD-ROM out of the laptop, but as long as its screw is removed, it will not break

TCATDI - 24/01/21

Stap 8 de cd-rom verwijderen door de knop in te drukken lukt niet 1 2 3 ik kom er straks op terug we gaan even verder kijken

Willem Zweedyk -

Stap 8 CD ROM verwijderen is gelukt uiteindelijk

Willem Zweedyk -

Step 9

Make sure that all screws and the CD-ROM Drive are removed before trying to complete this step to prevent damaging your laptop. During this step, you will likely hear loud crackling noises. This is normal.
Flip the computer back over with the screen facing up and open the laptop.

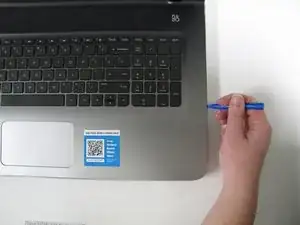

Use the Plastic Opening Tool to separate the face plate from the backing.

Step 10

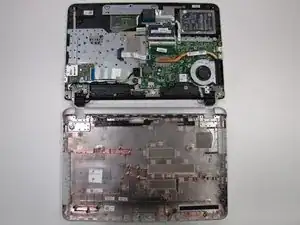

After running the opening tool along the sides, you can gently pop the keyboard open to access the Hard Drive.
The Hard Drive is located to the right of the RAM and above the Motherboard.
