HP Pavilion 17-x047na Hard Drive Replacement

Written By: Khaise Brice
  • Comments: 0
HP Pavilion 17-x047na Hard Drive Replacement

Difficulty

Difficult

Steps

6

Time Required

30 minutes

Introduction

Follow this guide if you need to replace the hard drive of your HP Pavilion 17-x047na.

  1. Qc6ilB6Y1OG3FI6r
    Qc6ilB6Y1OG3FI6r
    lvSVuLuAOJydhOmx

    • Turn off and unplug the laptop before replacing the battery.

    • The netbook needs to be top-side down with the lid closed.

    • Slide the plastic battery release latches towards the lock symbols.

  2. DYU1pWFVDxxi5vnE

    • Slide the battery out from the laptop.

  3. YXJeKmy5etUIxnQ3
    YXJeKmy5etUIxnQ3
    PjG5yiaIHuAXHywL

    • Using a Phillips #0 screwdriver, remove thirteen 7.0 mm screws from the back case.

    • Using a Phillips #0 screwdriver, remove the CD/DVD drive screw.

    • Use an ejection pin to eject and remove the CD/DVD drive.

  4. xPfTCBqne2BEZ1sW
    xPfTCBqne2BEZ1sW
    QoRyXpygfG6E46YY

    • Use an iFixit opening tool to separate the back cover from the laptop.

    • Gently pry open the cover, trying not to break the plastic.

  5. E3qrvqANgXRQC4JN

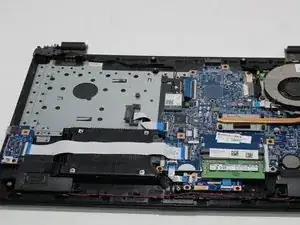

    • Locate the hard drive.

  6. JGvu3OHQORN4p5dP
    JGvu3OHQORN4p5dP
    KkDHBaIOk5ARBU4G
    EyOkOdBHQQK5PBhU

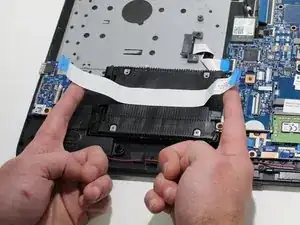

    • To remove the hard drive, lift both latches to remove the ribbon cable.

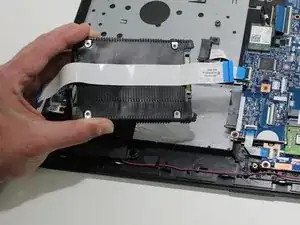

    • Once ribbon cable is removed, use the rubber case surrounding the hard drive to lift upwards and pull the hard drive out.

Conclusion

To reassemble your device, follow these instructions in reverse order.
