HP Pavilion DM4 Hard Drive Replacement

Written By: Wyatt Marsalek
  • Comments: 4
HP Pavilion DM4 Hard Drive Replacement

Difficulty

Very easy

Steps

6

Time Required

5 - 10 minutes

Introduction

Use this guide to replace the Hard Drive in the Pavilion Dm4.

  1. NvCXri6HiKGGOkjK
    NvCXri6HiKGGOkjK
    uR2HqOZtngXJrOCT

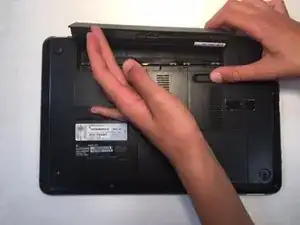

    • Unlock and remove the battery pack.

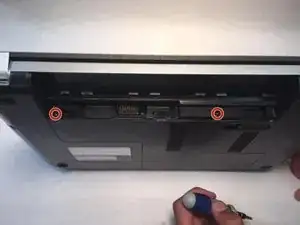

  2. BEdtm6jF3cSfGBjY
    BEdtm6jF3cSfGBjY
    veZuWXRi222oAgYK
    BhOPlPFGkPkytQEk

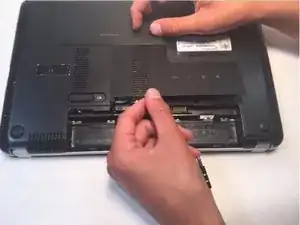

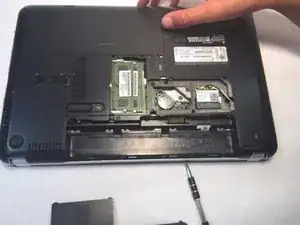

    • Unscrew the hidden screws covered by the battery pack and remove the panel to find more hidden screws.

  3. bE4MjkdVEjksjEAr
    bE4MjkdVEjksjEAr
    nBk1IxuLYpjXunFW
    txnTSJrsM4U5bTRU

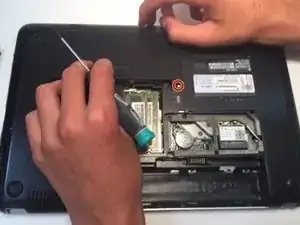

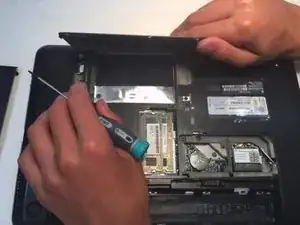

    • Unscrew the hidden screws in order to remove the hard drive cover.

    Screws were not removable on my machine. So, I would replace the word “remove” with “loosen” to avoid chance for cross-threading. otherwise, these directions were EXCELLENT.

    Vincent Juliano -

  4. NUqgI1iEG3XZedJP

    • Pull out the tab to remove the hard drive.

  5. fo2g6ZDSpRxUbFRZ
    fo2g6ZDSpRxUbFRZ
    RoewMWtIGguvGJla
    X2XALXxsyFvo2Zkd

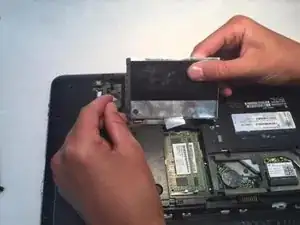

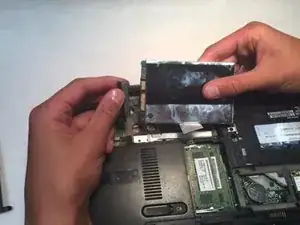

    • Take the hard drive out and pull the connector from it.

    • In order to disconnect the hard drive, grab the hard drive and cord then gently pull the hard drive away from the cord.

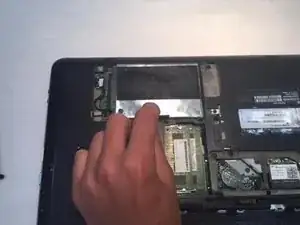

  6. UIiBUbShP4URJDUo

    • Replace the hard drive.

    • Do not take apart the hard drive if you want it to run anything at all!

    thanks that was helpful

    Mhamad MC -

    One more thing here is that you have to remove four screws that attach the little metal/plastic sleeve to the actual drive, and then slide the old drive out of the sleeve and the new one back in. Thanks for the guide.

    Evan -

Conclusion

To reassemble your device, follow these instructions in reverse order.
