HP Pavilion DV2913CL Disc Drive Replacement

Written By: Jeremy Jackson
  • Comments: 0
HP Pavilion DV2913CL Disc Drive Replacement

Difficulty

Easy

Steps

3

Time Required

1 - 5 minutes

Introduction

This guide demonstrates how to safely remove and replace the disc drive of an HP Pavilion DV2913CL Laptop in order to preserve the function of the device.

  1. 2ImMH6e1omOgZi11

    • Remove the two Phillips screws located on the back of the laptop.

  2. gEhNUxNpJDpDcWAj

    • Remove the plastic panel to reveal a second Phillips head screw.

    • Remove the screw shown below: this holds the disc drive in place.

  3. 1JiFYrJURDVlyD2t

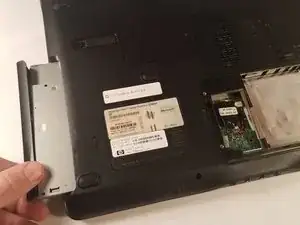

    • Slide the disc drive out of the laptop.

Conclusion

To reassemble your device, follow these instructions in reverse order.
