HP Pavilion DV3 Hard Drive Replacement

Written By: Luke Whitmarsh
  • Comments: 0
HP Pavilion DV3 Hard Drive Replacement

Difficulty

Easy

Steps

5

Time Required

7 minutes

Introduction

This guide will demonstrate how to remove the hard drive from you laptop. You will need the screwdriver listed in the tools section.

  1. NSFgVgmJXnHAoZ4Q

    • Step 1 – Battery: Locate the battery release slider on the bottom of the laptop and move it in the direction of the arrow to the unlock position.

    • The yellow highlighted edge of the battery should pop up slightly when the switch is moved

  2. VUlQvXChITNHMNtM
    VUlQvXChITNHMNtM
    r1eRJbK3rveFHG1Q

    • Step 2: Using the edge of the battery that has popped up, lift the battery out of the computer.

  3. GmLnq2KeHfPuX5KM

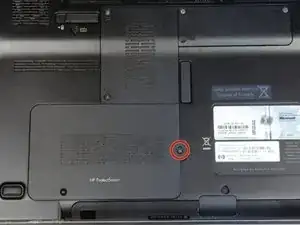

    • Locate the screw for the hard drive cover (The cover has HP ProtectSmart written on it).

    • Remove the 3.5 mm diameter, 7 mm long screw with your Phillips PH1 screwdriver.

    • The screw will remain attached to the cover.

  4. 5rc1U4grPqT3NmZd
    5rc1U4grPqT3NmZd
    lMDwutiXXtAMtVTh

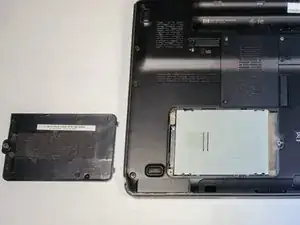

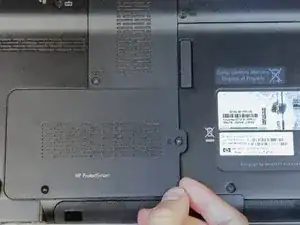

    • Grab the raised edge of the cover lift up. This will separate the cover from the laptop.

    • Put the cover and screw to the.

    • This will reveal the hard drive.

  5. SBhOuFqxjWFxsZCR
    SBhOuFqxjWFxsZCR
    nPIlasOn1lvIbdYG
    IWmmJwYpLrmAkupU

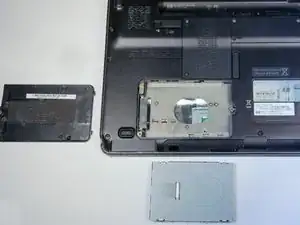

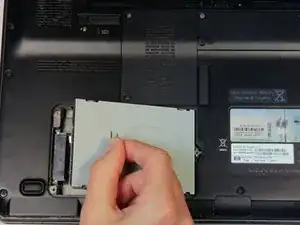

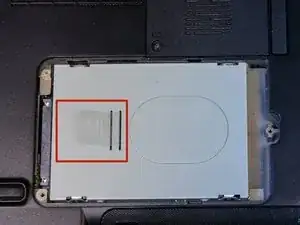

    • With your fingers, grab the clear tab.

    • Pull right first, and then upwards (towards you).

    • The hard drive should slide out of place and detach from the laptop.

Conclusion

To reassemble your device, follow these instructions in reverse order.
