Introduction
This guide provides instruction on how to replace a broken optical drive in the HP Pavilion G7-2289wm laptop.
Tools
-
-

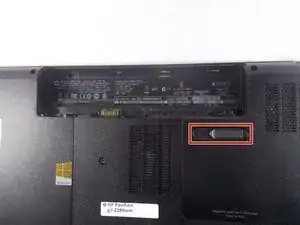

Located on the bottom side of your laptop, slide the battery release latch to the left, towards the center of the laptop.
-
Lift the battery up, and pull towards the center of the laptop to remove it.
-
-
-

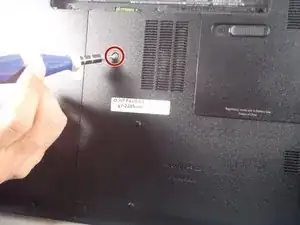

Loosen the screw that secures the service cover using a Phillips #0 screwdriver.
-
Lift the edge of the service cover up and forward until it’s at an angle to remove it.
-
-
-

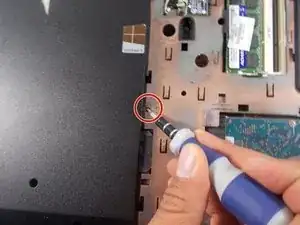

Remove the screw that secures the optical drive to the laptop using a Phillips #0 screwdriver.
-

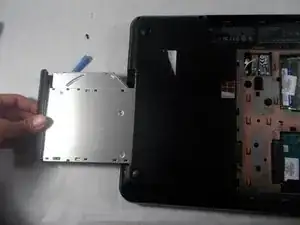

Slide the optical drive out of the laptop.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
