HP Pavilion G7-2289wm Touchpad Replacement

Written By: Ryson Smith
  • Comments: 0
HP Pavilion G7-2289wm Touchpad Replacement

Difficulty

Moderate

Steps

9

Time Required

No estimate

Introduction

This guide provides instruction on how to replace a broken or damaged touch pad on the HP Pavilion G7-2289wm laptop.

  1. 5A56JFH1HJsOt2V2

    • Located on the bottom side of your laptop, slide the battery release latch to the left, towards the center of the laptop.

    • Lift the battery up, and pull towards the center of the laptop to remove it.

  2. hfMQSkhAuMIHnC6Z

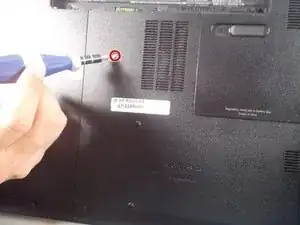

    • Loosen the screw that secures the service cover using a Phillips #0 screwdriver.

    • Pull the edge of the service cover toward you to remove it.

  3. IFvCdBJBIJwKfQoM

    • Disconnect the hard drive connector cable from the motherboard.

  4. BbvhZmK5iXk1ImSl

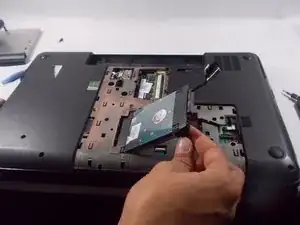

    • Lift the front edge of the hard drive, then pull the hard drive out gently.

  5. WIdEMMbceSZPSPeI

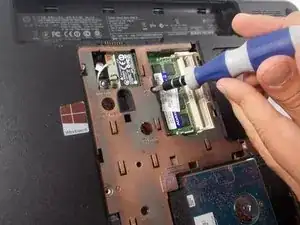

    • Remove all the screw that secures the keyboard to the computer using a Phillips #0 screwdriver.

  6. HVCMwhxybEBGv1Ah
    HVCMwhxybEBGv1Ah
    QW5WmqKO6oVJAUnj
    WIxB4NlOIxgtSsKF

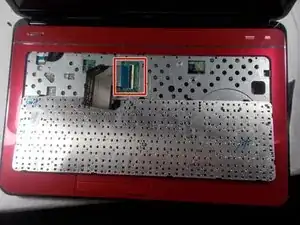

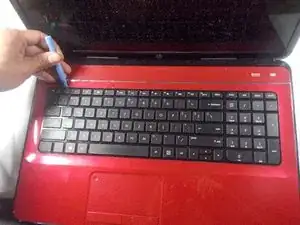

    • Flip your laptop around to the front, using an opening tool, pry around the perimeter of the keyboard.

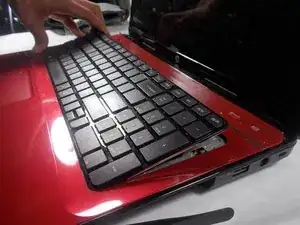

    • Lift the keyboard from the top backward towards the touch pad.

    • Unlatch the keyboard connector from the motherboard and remove the keyboard.

  7. gY2ZhiJgwpWvVgU4
    gY2ZhiJgwpWvVgU4
    ec3KvrsMkurluNjZ

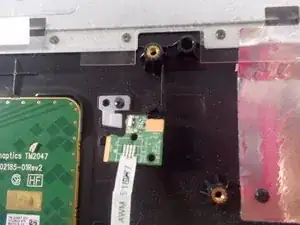

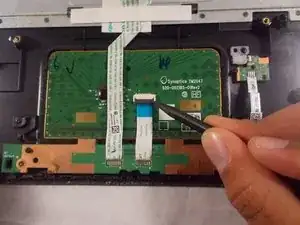

    • Remove the wires attached to the button pad.

  8. UFVgcwdWBCvaSKGP

    • Carefully lift and remove the button board.

    • Remove all screws from the bottom of the laptop.

Conclusion

To reassemble your device, follow these instructions in reverse order.
