Introduction
This guide shows how to disassemble the HP Pavilion Sleekbook 14-b013cl in order to replace the cooling fan.
Tools
-

                  -

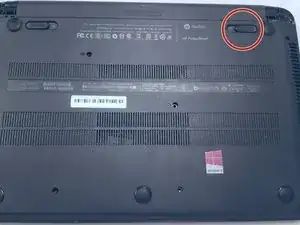

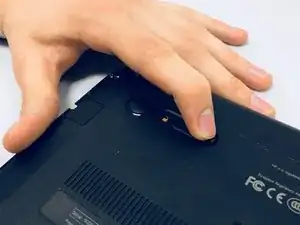

            Flip the computer over and move the battery lock switch to the "unlocked" position (marked by an orange lock icon).

-

-

                  -

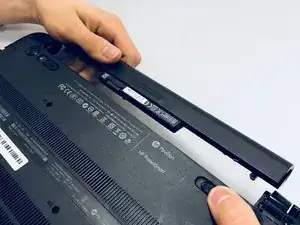

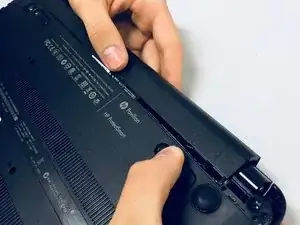

            Press the switch on the right-hand side of the back of the device towards the center until the gray battery icon is no longer visible. This will eject the battery.

-

-

                  -

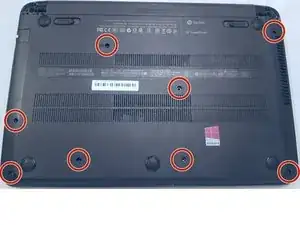

            Using a Phillips #0 screwdriver, unscrew all nine of the screws from the bottom of the computer.

-

-

                  -

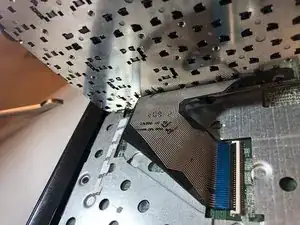

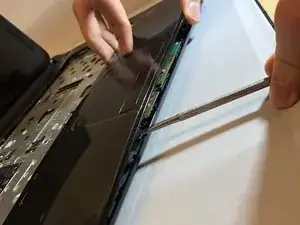

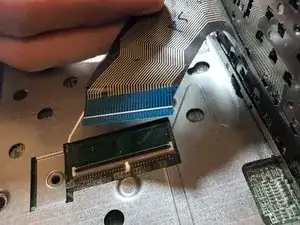

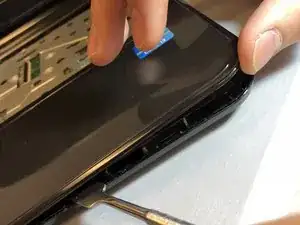

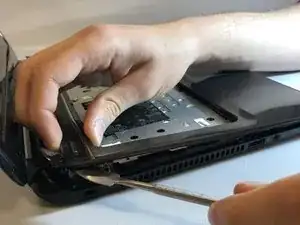

            Using a plastic or metal spudger, carefully pry apart the palm rest from the rest of the laptop.

-

-

                  -

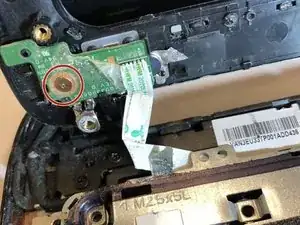

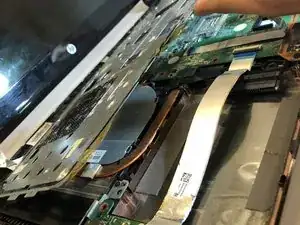

            Unscrew the circuit board underneath the power button.
-

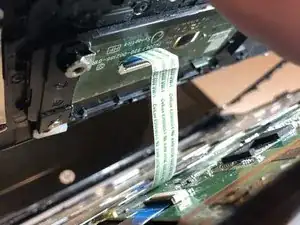

            Remove this circuit board by pulling up and away on the plastic tab.

-

-

                  -

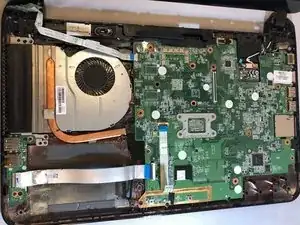

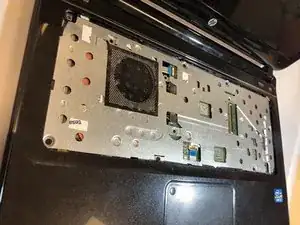

            Using a Phillips #0 screwdriver, remove all the screws and take the metal plate off the mother board.

-

-

                  -

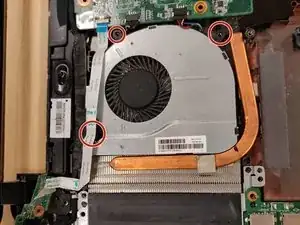

            Remove the three screws holding the cooling fan in place using a Phillips #0 screwdriver.
-

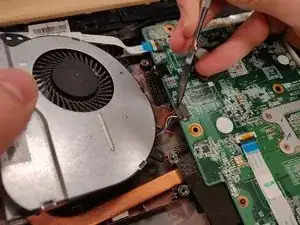

            Using a plastic opening tool, remove the power cable for the fan.
-
            Remove the fan from the device.

-

To reassemble your device, follow these instructions in reverse order.
