Introduction
If you need to install new ram in your HP Pavilion Touch Smart, follow this guide. Required tools for the replacement of RAM are a phillips #1 screwdriver and iFixit opening tools.
Parts
-
-

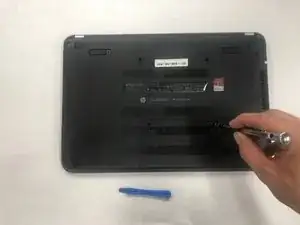

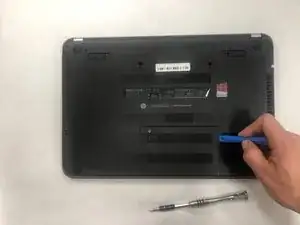

Use the plastic opening tool to remove the cover. There are several clips that hold it on.
-

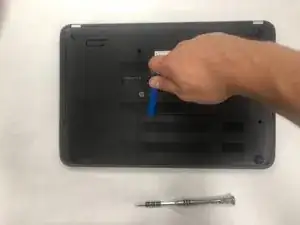

Carefully slide the plastic opening tool under the edge of the cover until it comes loose.
-

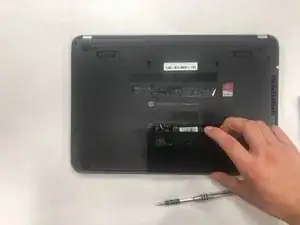

You can now remove the cover.
-
-
-

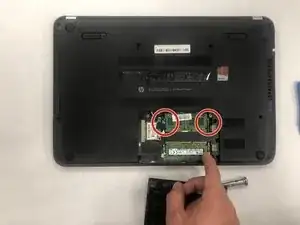

There are 4 clips total, one on each side of the RAM.
-

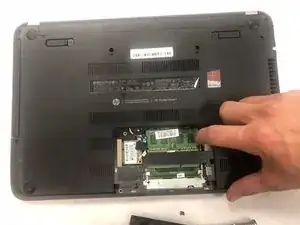

Remove the ram by pushing the clamps outward, away from the ram
-

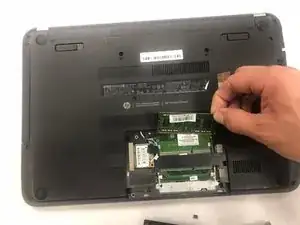

After the pushing the clamps outward the ram should lift up and be able to slide out.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
