HP Pavilion dv2000 Wireless Card Replacement

Written By: Erik Muniz
  • Comments: 0
HP Pavilion dv2000 Wireless Card Replacement

Difficulty

Easy

Steps

3

Time Required

10 - 20 minutes

Introduction

This guide will help you replace the wireless card on you HP Pavilion dv2000.

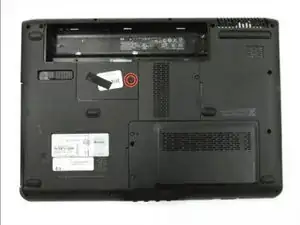

  1. 6uYEdpSkZIdO1wmX
    6uYEdpSkZIdO1wmX
    nEPkRGgO6f5rwXNv

    • Make sure your computer is powered down and unplugged from the charger before removing any components.

    • Locate and unscrew the single 3.8mm screw holding the wireless card casing in place.

    • Lift up and remove the wireless card casing.

    • The 3.8mm screw will remain in the wireless card casing after you unscrew it.

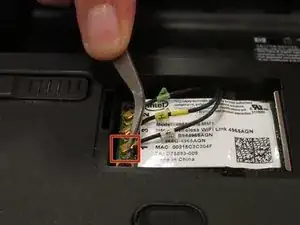

  2. mIaQxRnKVDu2PvAv
    mIaQxRnKVDu2PvAv

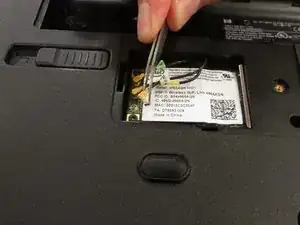

    mJhThxRsMclmOHtV

    • Use a pair of tweezers to remove the three antennas from their sockets.

    • Remove the antennas by the contacts connected to the socket, the crimps connecting the wires and the sockets are delicate and are easily damaged.

  3. EevX36Bvw3wlGrbb
    EevX36Bvw3wlGrbb

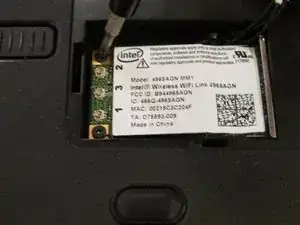

    bfjEvXXJyHC3nSDP

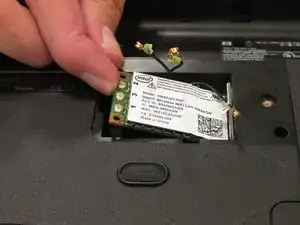

    WR66X1Q3tZWF5i1J

    • Remove the two 3.8mm screws holding down the wireless card with your Phillips #00 Screwdriver.

    • Gently pull out your wireless card from its top side to remove it from its holding.

Conclusion

To reassemble your device, follow these instructions in reverse order.
