HP Pavilion dv4-2045dx Wi-fi Adapter/card Replacement

Written By: Sarah Tucker
  • Comments: 1
HP Pavilion dv4-2045dx Wi-fi Adapter/card Replacement

Difficulty

Moderate

Steps

10

Time Required

10 minutes

Introduction

After removing the battery you will remove the case cover on the back of your computer, then detach two wires connected to the wifi adapter/card, and finally remove the wifi adapter/card.

  1. 1WiL4KvHvVUlNKbr

    • Turn off your laptop and disconnect the power adapter before doing anything else with your computer.

  2. fVcNkVVDod1b2IUn

    • Turn your laptop over so the bottom of your laptop is facing up and the hinge is located away from you

  3. M1TMMvOqqftpNxi2
    M1TMMvOqqftpNxi2
    fGNNWRtlgKYCGqHZ

    • Slide the lock switch to the left.

    • The lock switch is located by the bottom left side of the battery.

    • The battery should pop up after you move the switch.

  4. x6wBvoBLMEyp6W4C
    x6wBvoBLMEyp6W4C
    EoD2H4m2aaMrvboG
    q6lVEwidN3ON1Rqa

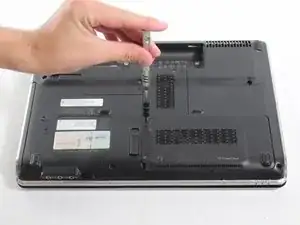

    • Lift up the released battery by rotating it up and away from you.

    • Pull the battery out.

    • The battery is held in by a latch in the front of the battery socket and by tabs in the back. When putting the battery back in, line the tabs back up with the grooves located in the back of the socket and rotate the battery towards you. When in place, push the battery in until you hear a click.

  5. A5VmBoYQI4GvUXCl
    A5VmBoYQI4GvUXCl
    TMuInLeaVytnPgGJ
    AtlOSwJoLPriWReo

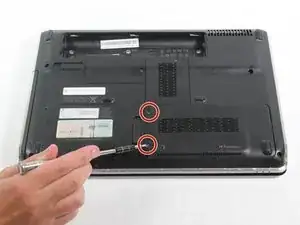

    • Locate the two 7.5 mm screws on the hard drive case plate.

    • Use the Phillips #0 screw driver to remove both 7.5 mm screws.

    • Be sure to place the screws somewhere they will not roll away so that you do not lose them.

  6. 6rprQAHos5UPbCwb
    6rprQAHos5UPbCwb
    rVLkkUpyJW3SNM3J

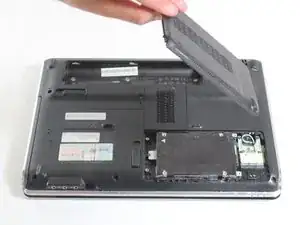

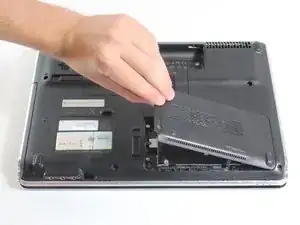

    • Remove the hard drive case plate.

    • You may want to use an opening pick under the leftmost edge to pry open the case plate if you have trouble opening the hard drive socket.

  7. GYpRHoYBRqkKeNmG
    GYpRHoYBRqkKeNmG
    4naoguT1Q2TuQ4rR
    bsQDcxbsB6EcvLlT

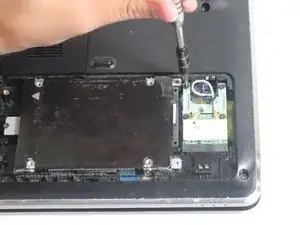

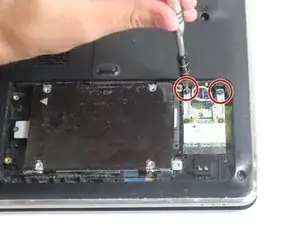

    • Unscrew and remove the two 2.5 mm black screws with a Phillips #0 screwdriver.

    • Put the screws somewhere they will not roll away so you do not lose them.

    • Notice that these 2.5 mm screws are black, while the other 2.5 mm screws in the laptop are gold.

    • There are two other screws on the wifi adapter/card; do not remove these. Only remove the two screws indicated in the picture.

  8. qk2SXyoj2sjlPQOq

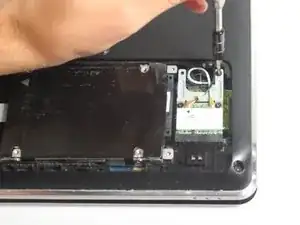

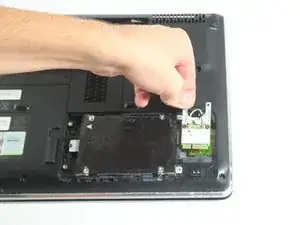

    • Lift the wifi adapter/card out of the hard drive socket with your hands.

    • The card will remain attached to the hard drive by two wires.

  9. pdxTwxHDw1E2jEiB
    pdxTwxHDw1E2jEiB
    lp2EuEWumEmVMeNu
    FpXuNC4PYOUKHXDD

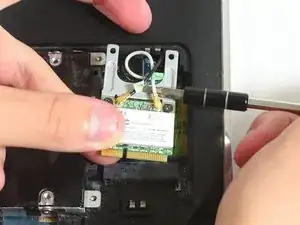

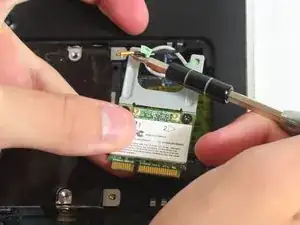

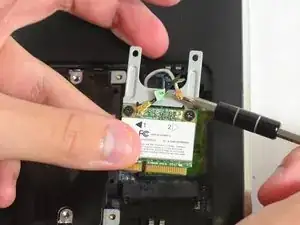

    • Locate the two antenna cable connectors. One is white and the other is black.

    • Pop off the two antenna cable connectors using your fingers or a plastic spudger.

    • Avoid using metal tools on delicate components, as they may cause further damage to the device.

  10. yIdCS1QrAe1SOFds
    yIdCS1QrAe1SOFds
    uFhwW2BsGSSJoqJh

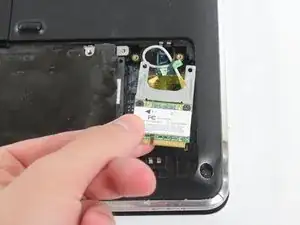

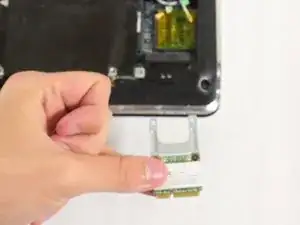

    • Remove the wifi adapter/card from the socket.

    • When replacing the wifi adapter/card, make sure to reattach the white and black wires in the correct places. A sticker on the card has a black triangle and a white triangle, indicating where the wires reattach.

Conclusion

To reassemble your device, follow these instructions in reverse order.
