HP Pavilion dv4000 Keyboard Replacement

Written By: Nick LaMarche
  • Comments: 0
HP Pavilion dv4000 Keyboard Replacement

Difficulty

Moderate

Steps

13

Time Required

20 - 30 minutes

Introduction

If your keyboard is not working, keys are sticking, or keys are missing, it may be time to replace your keyboard.

  1. aTXeJNlKuR4jFAlj

    • Turn the laptop upside down with the battery compartment facing you.

  2. tlWv1RkHSvND3qRB

    • Slide the battery release latch to the right and hold in place.

  3. LgOaNBemmKMtydZd

    • Lift the front edge of the battery up and remove it from the compartment.

  4. HCcCkwLYYSibZybH

    • Have your device open in front of you for easy access to the keyboard.

  5. RpZPgewIJIJUotJ5

    • Using a metal spudger, pry up on the plastic piece above the keyboard containing the power button.

    • Be careful not to damage any components with the tool while prying.

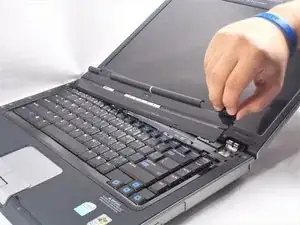

  6. ORvReQF1TqiPfWfR

    • Lift the plastic piece up.

    • When lifting this piece, be careful not to damage the ribbon strip connected to it.

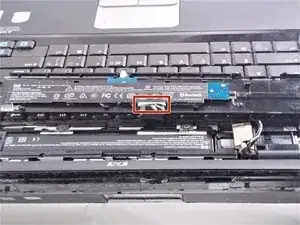

  7. FNyRGKLyZpHQQaVg
    FNyRGKLyZpHQQaVg
    nDIqMomhMDg3tfba
    2NQB1KOZMQJSqkZK

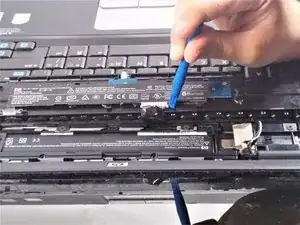

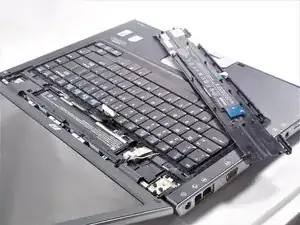

    • Place the plastic piece on the keyboard so the ribbon strip is easily accessible.

    • Carefully disconnect the ribbon strip from the keyboard by pressing on the tabs at the edges.

    • Remove plastic piece and set aside.

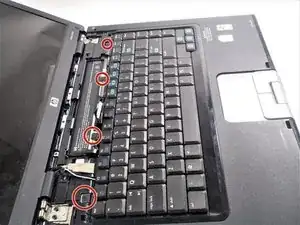

  8. fbdyD5ExVvIvLNWs

    • Locate the four 2x2 mm screws that hold the keyboard in place.

  9. F5gUuXvDVEJwQXd5

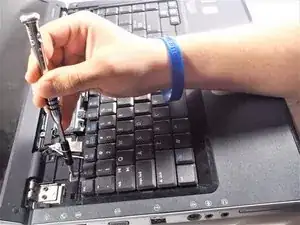

    • Unscrew the four 2x2 mm screws with a #00 Phillips screwdriver.

  10. ldb5W56Pw3ChSpUF
    ldb5W56Pw3ChSpUF
    1jdUAKnaGbIAxwbF

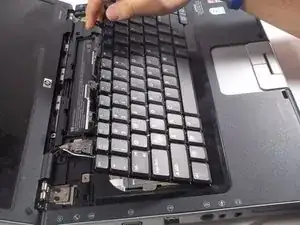

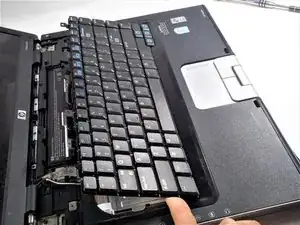

    • Lift the keyboard up.

    • When lifting the keyboard, be sure not to damage the ribbon strip that is connected to it.

  11. xpBNpbp5pllrwPhg

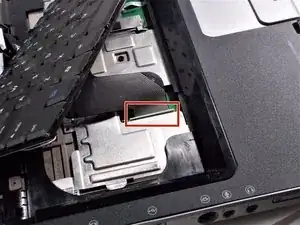

    • Locate where the ribbon strip is connected to the motherboard.

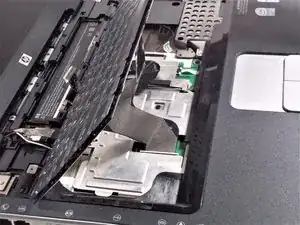

  12. SIQ2dGWeyNUjaMvD
    SIQ2dGWeyNUjaMvD
    pF1Mdfjx6KPBrQJy

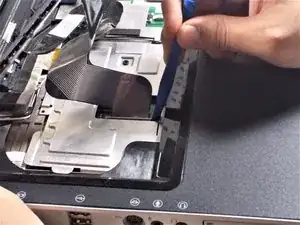

    • Pry at the edges of the plastic clip holding the ribbon cable to the motherboard.

    • Be careful during this step as these clips are very easy to break.

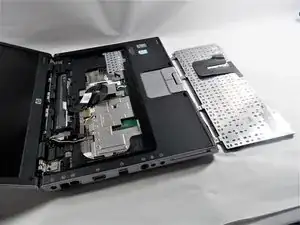

  13. KgQoH3Vpd5Lmikph
    KgQoH3Vpd5Lmikph
    OEYBTJYX1EIwwdUt
    DSjPYxqKcTmYpCnl

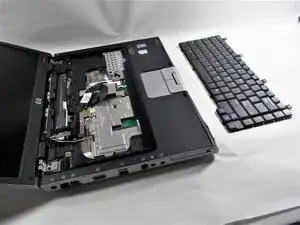

    • Remove the keyboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
