HP Pavilion dv6-1245dx RAM Replacement

Written By: Jaime
  • Comments: 0
HP Pavilion dv6-1245dx RAM Replacement

Difficulty

Moderate

Steps

6

Time Required

10 - 20 minutes

Introduction

In this guide, you will learn how to replace your RAM.

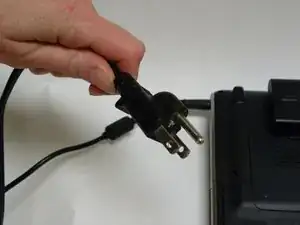

  1. yP133bhF6qNTmJRe

    • Shut down the computer and unplug it from the outlet.

    • All screws removed in this guide will require a Phillips #00 screwdriver.

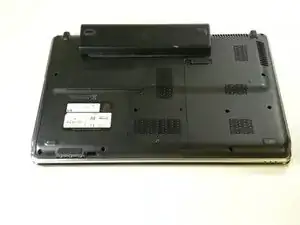

  2. pcegeGGloLbGjXpL

    • Turn the computer upside down.

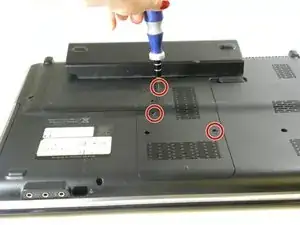

  3. NHkxHXcuchG2ChGS

    • Loosen the three screws from the memory module compartment cover

    • Screws will not come all the way out.

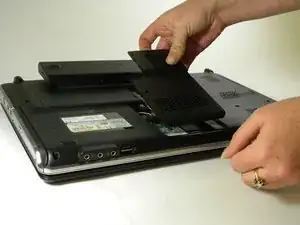

  4. fZnA2I2IaFXedqr6

    • Remove the memory module compartment cover.

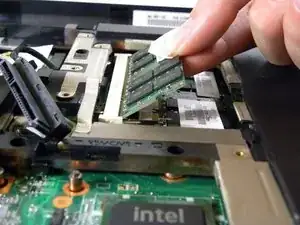

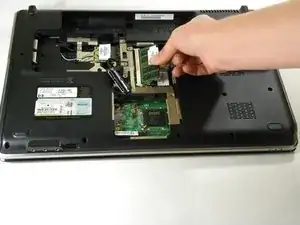

  5. AQuN2jHUoZTTFBkf
    AQuN2jHUoZTTFBkf
    Lln3hVdVGUUmn6Ku
    ULo2wJGq3I2ePXxi

    • Remove the first memory module by spreading apart the two silver retaining tabs, using your thumb and index finger.

    • Pull and lift the green memory module upward at a 45-degree angle, and then pull the memory module out of the computer.

    • If you are replacing both memory cards, repeat this step with the bottom memory card.

  6. G5PqRPtR2IBTDpW6

    • To replace the memory card, insert the card at a 45-degree angle, then push into slot.

    • Push down gently so the silver retaining tabs click back into place.

    • If you are replacing both memory cards, replace the bottom card (closest to the system board) first.

Conclusion

To reassemble your device, follow these instructions in reverse order.
