HP Pavilion dv7-4285dx Hard Drive Replacement

Written By: Austin Sandel
  • Comments: 0
HP Pavilion dv7-4285dx Hard Drive Replacement

Difficulty

Easy

Steps

5

Time Required

1 minute

Introduction

This guide will describe how to replace the hard drive of the HP Pavilion dv7-4285dx

  1. qF1KDZeDvXCqVaDT
    qF1KDZeDvXCqVaDT
    vpjVfyxWLnZax4lT

    • Slide the battery release switch to the left. The battery pack will then subsequently release.

  2. weAGCPtdn3gdHIJE

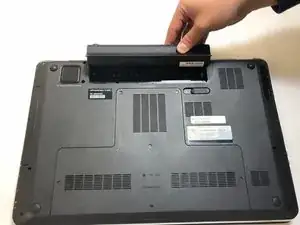

    • Remove the battery pack from the socket.

  3. HnhACMfbDSgqldXg
    HnhACMfbDSgqldXg
    TLaYZ6vp2NNfWKCV
    OMyFOZNTIFHdpnK2

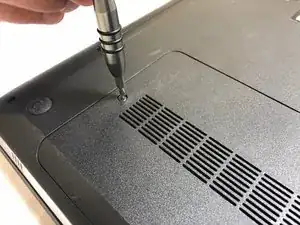

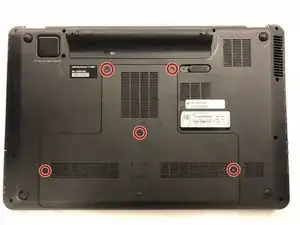

    • Unscrew the 5 back plate screws using a Phillips #0 screwdriver.

    • During the removal process, the back plate will retain the 5 back plate screws.

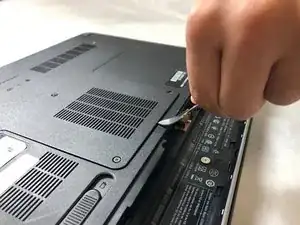

    • Remove back plate using a metal spudger.

  4. QFyUDRu1MUUShkT3
    QFyUDRu1MUUShkT3
    cAYJFonldoekmiLk

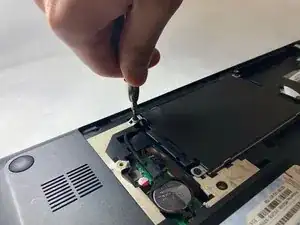

    • Remove the four 5.7 mm screws, holding down the hard drive, using a Phillips #0 screwdriver.

  5. FFwbJrmlBnssM4xW
    FFwbJrmlBnssM4xW
    tnXUwICrt2RDVMxV
    SeIstLX5wYTNAGdK

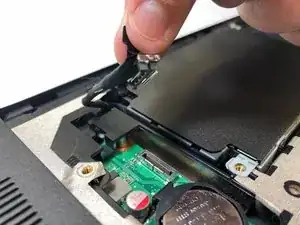

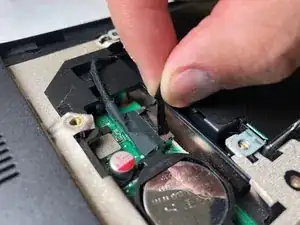

    • Pull up carefully on tab hooking the hard drive to the mother board.

    • Remove the hard drive.

Conclusion

To reassemble your device, follow these instructions in reverse order.
