HP Pavilion dv7t-7000 Speaker Replacement

Written By: Nabin Bhatta
  • Comments: 1
HP Pavilion dv7t-7000 Speaker Replacement

Difficulty

Moderate

Steps

11

Time Required

30 minutes

Introduction

How to replace the speaker on a HP Pavilion dv7t-7000 laptop.

  1. kYdpTiR1c1orUnDn

    • Turn the computer off and disconnect if from all power sources.

  2. AvXxwjFFQkZkxiJr

    • Slide the battery release switch to the left.

  3. EEAUpsH6fFrvnTjV

    • Hold the release switch all of the way to the left and your other hand to pull the battery out.

  4. o1ohOsCEGFMsQhZs

    • Unscrew the single Phillips #00 screw.

    • Screw will not come out, it is connected to the panel

  5. VoKGmu2gBdf5HGTp
    VoKGmu2gBdf5HGTp
    C4l3BPrKPTJEjxJQ

    • Remove service hatch by sliding away from the computer and lifting up.

  6. JVOsoPwFZq5jfDYK
    JVOsoPwFZq5jfDYK
    CVumHbRINxrJ2GVf

    • Remove the single Phillips #00 screw.

    • Flip the laptop over.

  7. x6PZVFAv3ob2TxYQ
    x6PZVFAv3ob2TxYQ
    MKskSxoR3ndZfJVE
    VYTWCLkW1KyA3bQ1

    • Wedge a spudger in between the keyboard and the upper bezel (nearest the screen).

    • Pry upward to release the keyboard clips.

    • The keyboard is plugged into the motherboard, so be careful not to pull out while lifting keyboard.

    The keyboard on mine had retaining studs on the palm rest side. Removing according to these directions broke the keyboard.

    Some keyboards may not have these.

    Peter K -

  8. qhXZqjeFQPee3NlG

    • Use the flat end of a spudger to flip up the black tab on the ZIF connectors.

    • Pull the ribbon cables out of the ZIF connectors.

    • Remove the keyboard.

  9. ZT2R2tjxHTt3tMXE
    ZT2R2tjxHTt3tMXE
    6s2PXKdSgth1IVx6
    gt4owfZFUBuKgUyK

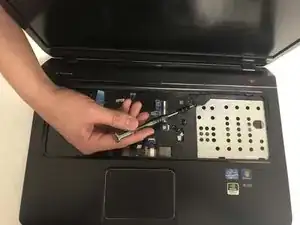

    • Use Phillips #00 to unscrew the screw and take off the front panel.

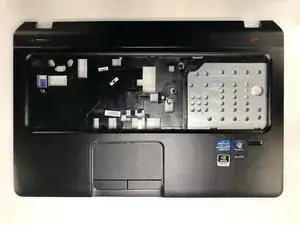

  10. WQQ6Jybo4WnTQDSY
    WQQ6Jybo4WnTQDSY
    OFDqFIRmDF3LxXy2

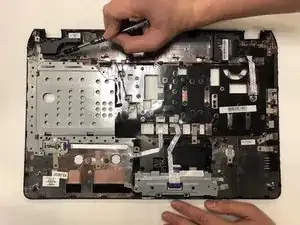

    • The speaker is located at the back side of the front panel.

    • Unscrew two screws located at the speaker.

  11. hSLXHrrotEU1ZAH5

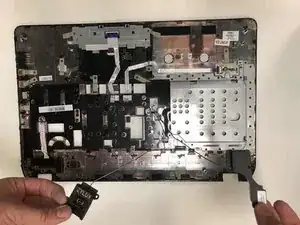

    • Pull out the speakers to remove.

Conclusion

To reassemble your device, follow these instructions in reverse order.
