HP Pavilion g7-1368dx Keyboard Replacement

Written By: Kianna Young
  • Comments: 0
HP Pavilion g7-1368dx Keyboard Replacement

Difficulty

Moderate

Steps

6

Time Required

25 minutes

Introduction

In this guide, you will learn how to replace the keyboard of your HP Pavilion g7-1368dx. this process takes roughly 25 minutes. The tools that you will need to preform this replacement are a Philips #1 Screwdriver, and the plastic iFixit opening tool.

  1. p3VIkJxOqEvrHiIA

    • Turn the device over so that the lower case is facing up.

    • Slide the battery release latch. The battery will pop up.

  2. YaUZaUQNpfYkd2an

    • Lift and remove the battery from its compartment.

  3. gBsws1FxWwiXJp1g
    gBsws1FxWwiXJp1g
    OjIEww4VA4ig5jS4
    PFjUVVu261Rqyoqt

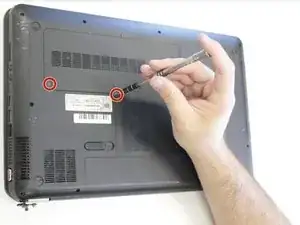

    • Loosen the two Phillips #1 screws that connect the service panel to the device.

    • These are captive screws and cannot be fully removed. They will remain attached to the service panel.

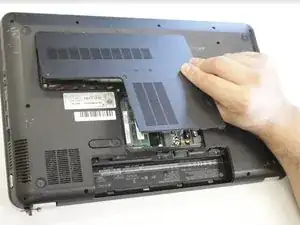

    • Slide the service panel down and pull it up to remove.

  4. uoJAurWAEbCXU3LX

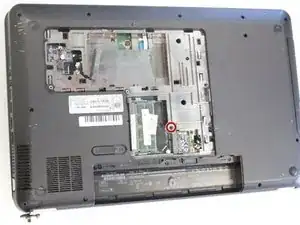

    • Remove the one 7 mm Phillips #1 screw securing the keyboard to the device.

  5. BXNSrY2qqgHbuTWV

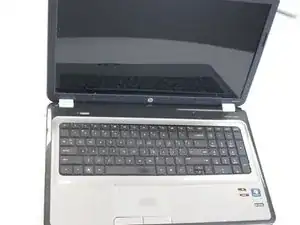

    • Flip over the device and open the screen.

  6. kJgDY1sNtGCSFolY
    kJgDY1sNtGCSFolY
    j6AjKQ26IJCGIpGM

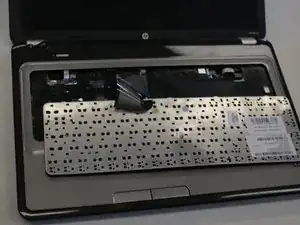

    • Flip the keyboard over and locate the black ribbon cable that attaches the keyboard to the device.

    • Using a plastic opening tool, flip up the white tab on the zero insertion force connector.

    • Disconnect the ribbon cable by sliding it out of the ZIF connector.

    • Remove the keyboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
