HP Pavilion p6 Hard Drive Replacement

Written By: Oli
  • Comments: 1
HP Pavilion p6 Hard Drive Replacement

Difficulty

Easy

Steps

4

Time Required

No estimate

Introduction

How to upgrade or replace you Hard Drive in you HP Pavilion p6 computer.

  1. DlYUqp1ugWcLQSQl
    DlYUqp1ugWcLQSQl
    1mgyenBTPsQ5FYVI
    5RyWV6pdrHc4MHPR

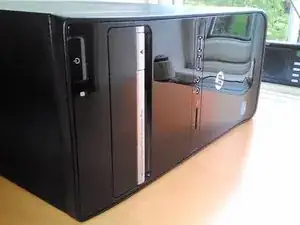

    • Before you start make sure that all of the leads have been disconnected from the computer.

    • It is strongly recomended to wait at least 15 minutes after turing it off to allow the computer and internal components to cool down.

    • It is recomended to lay the computer down with the pull tab at the top to allow it to be easily opened.

    • It is also worth mentioning at this point that for complete safety when working inside the computer that wearing an anti-static band and touching a grounded metal object before starting is good practise.

  2. nZQlM1MIgxFmYed2
    nZQlM1MIgxFmYed2
    5UWMiFo4aWEXOhmD
    FqROBYWBo6VA31LP

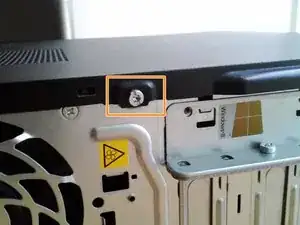

    • In order to remove the side panel a single screw needs to first be removed.

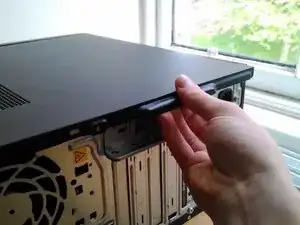

    • The side panel can then be pulled towards the back of the computer using the pull tab provided.

    • The panel then needs to be rotated as showed in order to remove it from the computer.

  3. ExqCZHbnVquCdJ2I
    ExqCZHbnVquCdJ2I
    tmMde3IVQVkMaUWG
    UrsMuwICIpilGZSh

    • Firstly the power and Sata cables should be disconected - they can be removed by just pulling them straight back.

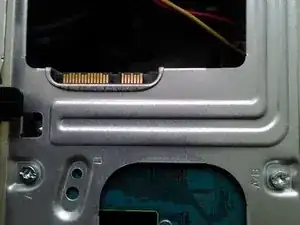

    • After this is done it should look like the second picture.

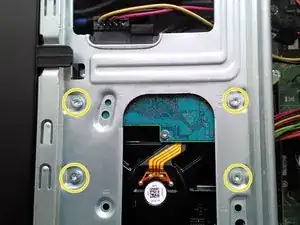

    • Lastly four screws need to be removed that secure the Hard Drive to the case.

    • Extreme care should be take here as the Hard Drive should be supported when loosening off the last screw. Be careful not to press on the casing and only hold it by the edges.

  4. BndaLAfUP1UseMQx
    BndaLAfUP1UseMQx
    R5xg2SRhqeNwLwXt
    k2PJwBGs4cM3glgS

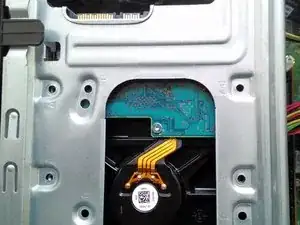

    • The computer should now look like the first picture.

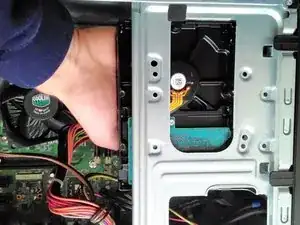

    • While still supporting the Hard Drive by the edges slowly pull it towards you as shown and out of the computer.

    • Make sure you keep it in a safe place and don't apply any force to the top cover.

Conclusion

To reassemble your device, follow these instructions in reverse order.
