Introduction
To remove the hard drive you will need a Phillips PH1 screw driver. Caution not all screws will completely detach.
Tools
-
-
Slide latch next to battery icon until battery pops up.
-
Pull the battery away from the computer until completely detached.
-
-
-
Position the computer so the front is towards you.
-

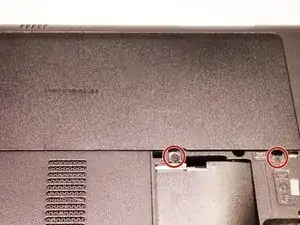

Remove two 5mm Phillips #1 screws
-
Slide the hard drive cover towards the empty battery spot and remove it.
-
-
-

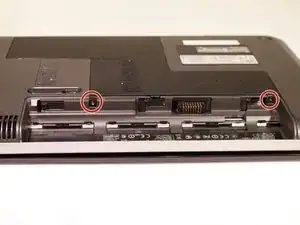

Loosen two 5mm Phillips #1 screws securing plastic cover, until cover is detachable.
-

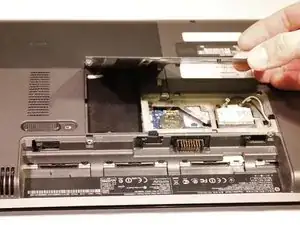

Slide cover toward empty battery area and remove it.
-
-
-

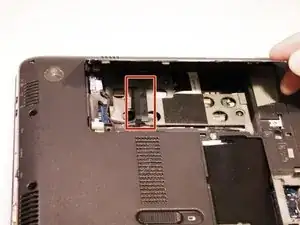

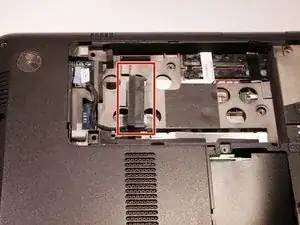

Disconnect the hard drive cable that is plugged in.
-
Lift the tab on the hard drive to pull it out of the computer.
-
Hard Drive is removed.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
