Introduction
To detach the memory you will need a Phillips PH1 screwdriver. Also remember to be gentle with the screws because not all of them will completely detach from the plastic.
Tools
-
-

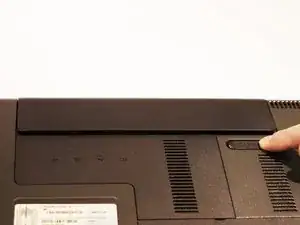

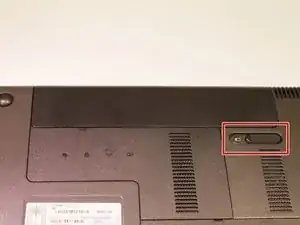

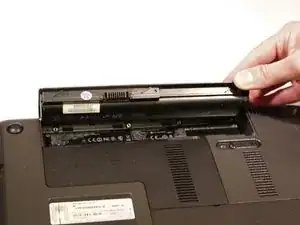

Slide latch next to battery icon until battery pops up.
-

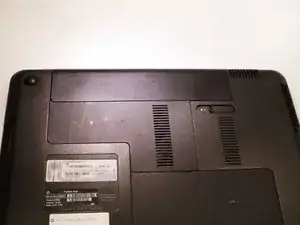

Pull the battery away from the computer until completely detached.
-
-
-

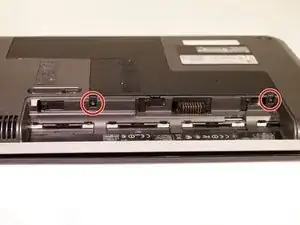

Loosen two 5mm Phillips #1 screws securing plastic cover, until cover is detachable.
-

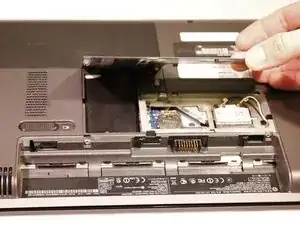

Slide cover toward empty battery area and remove it.
-
-
-
Lift black cover overlaying memory chip.
-

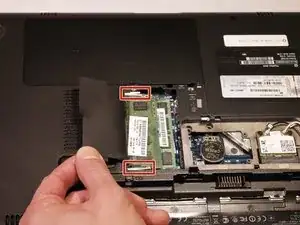

Spread the tabs on each side of the memory slot to release the module.
-

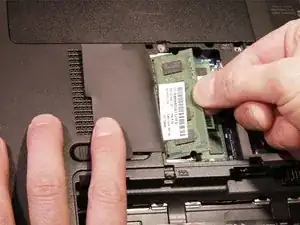

Remove memory by pulling the memory out at an angle, until completely detached.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
