Introduction
You will need to remove many parts of the computer. The key is to be careful when removing some parts of the computer.
Tools
-

                  -
            Slide latch next to battery icon until battery pops up.
-
            Pull the battery away from the computer until completely detached.

-

-

                  -
            Position the computer so the front is towards you.
-
            Remove two 5mm Phillips #1 screws
-
            Slide the hard drive cover towards the empty battery spot and remove it.

-

-

                  -
            Loosen two 5mm Phillips #1 screws securing plastic cover, until cover is detachable.
-
            Slide cover toward empty battery area and remove it.

-

-

                  -
            Disconnect the hard drive cable that is plugged in.
-
            Lift the tab on the hard drive to pull it out of the computer.
-

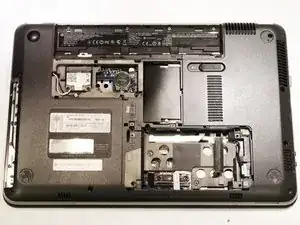

            Hard Drive is removed.

-

-

                  -
            Remove one Phillips M2.5X5.0 Screw that is securing the optical drive.
-

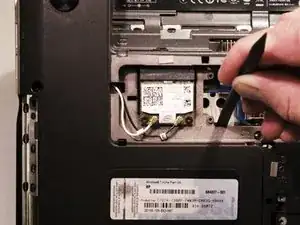

            With the nylon spudger, push the optical drive until you can grab it.
-

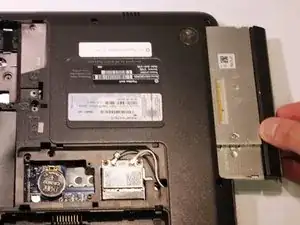

            Pull the optical drive all the way out, until removed.

-

-

                  -
            Remove 2 Phillips M2.5X6.5 screws from the back of the computer.
-
            Turn the computer over, and open the computer as far as possible without breaking it.
-

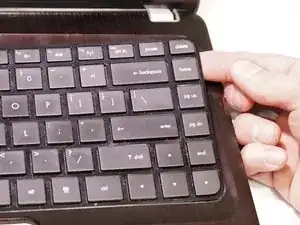

            Release the top of the keyboard by lifting up and gently pull the top up until the whole keyboard is up.
-

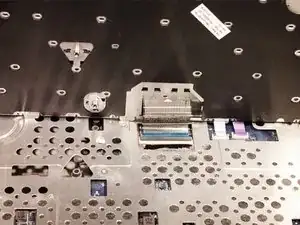

            Lift plastic cover to release the ZIF connector that is holding the keyboard in place. Then remove the keyboard.

-

-

                  -
            Turn the computer upside down with the front towards you, and, remove the two rubber feet near the battery.
-
            Remove 13 Phillips M2.0X7.0 screws.
-
            Remove 6 Phillips M2.0X2.0 broad head screws.
-
            Turn computer over and open the computer as far as possible without breaking it.

-

-

                  -

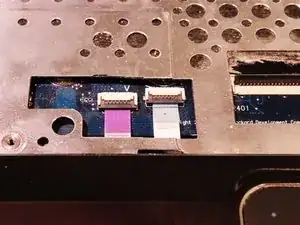

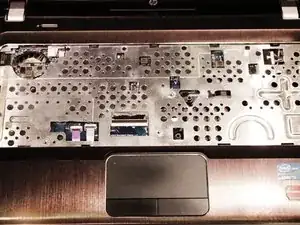

            Release 2 ZIF connectors where the touch pad cable and fingerprint reader are connected.
-
            Remove 4 Phillips M2.0X4.0 screws near the top of the keyboard area.
-

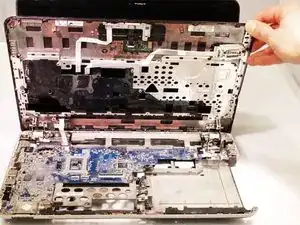

            Lift top cover from the base and release the ZIF connector that the power button is connected to. The cover should now be removed.

-

To reassemble your device, follow these instructions in reverse order.
