HP ProBook 440 G1 Optical Drive Replacement

Written By: Ethan A Courtney
  • Comments: 0
HP ProBook 440 G1 Optical Drive Replacement

Difficulty

Easy

Steps

7

Time Required

5 minutes

Introduction

How to replace the optical drive of an HP ProBook 440 G1.

  1. fODLBkHedQBOnn5y
    fODLBkHedQBOnn5y
    SdWfSEGViRqauKGL

    • Make sure the laptop is turned off before you start.

    • Push and hold the release tab on the right and left toward the center.

  2. wAGEM1HCv1htPVMO
    wAGEM1HCv1htPVMO
    jwQJOY2ItQ3PXFPv

    • Pull the battery out.

  3. wobUa2ONdLJiYUCT
    wobUa2ONdLJiYUCT
    vUVfPXLRCWfOmJq3
    v15gpeynRq5VfdFu

    • Push and hold the release tabs on the right and left toward the center again.

  4. dsDxEjL5ONDoZEQQ

    • Slide the backplate off.

  5. pUskWSNBctWeWN5u
    pUskWSNBctWeWN5u
    fshyyRbjs4OloMky

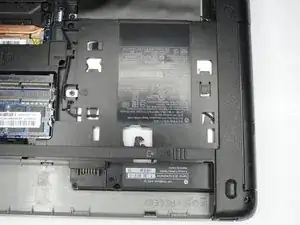

    • Locate the optical drive, near the battery on the right side.

  6. bJHcCXskIHFbwUAq
    bJHcCXskIHFbwUAq
    emh3H5YrmiCYMRvU
    svOxeHsOTHt4pEJE

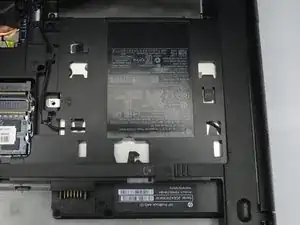

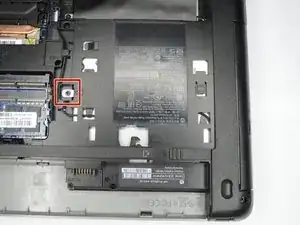

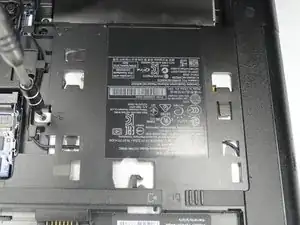

    • Remove the Philips PM2.5x6.0 screw that attaches the optical drive to the computer.

  7. t4sMFjPqQDaB6kXc
    t4sMFjPqQDaB6kXc
    Dp3JuYDZugfcGYes

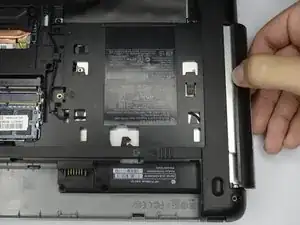

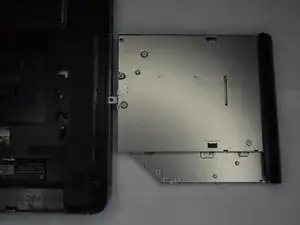

    • Slowly remove the optical drive, by pulling it straight out of the slot.

Conclusion

To reassemble your device, follow these instructions in reverse order.
