HP ProBook 440 G9 Trackpad Replacement

Written By: Joel
  • Comments: 0
HP ProBook 440 G9 Trackpad Replacement

Difficulty

Easy

Steps

4

Time Required

20 minutes

Introduction

  1. ef4seFUUs2EmhNRw
    ef4seFUUs2EmhNRw
    jeJLEW5T3B1g3DDe

    • Use Phillips #01 screwdriver to unscrew all 6 threaded screws.

    • Do not remove screws from bottom cover as they are intended to stay attached to the bottom cover.

    • Use guitar pick tool to unclip the back cover all around the edges starting from the top.

  2. CVUMQOIBLDwmBmRN
    CVUMQOIBLDwmBmRN
    rGgC6BBqNf3o2dxW
    rjQCI2uNJacJLTl2

    • Remove all 4 screws from the battery.

    • Disconnect the Battery Connector from the motherboard using the side tabs on the connector.

    • Possible spark may occur at the Battery Connector port if laptop is not fully powered off when replacing the laptop battery.

    • Remove the battery from the laptop.

  3. P3cGlnAmAsbnXKvi
    P3cGlnAmAsbnXKvi
    WTguyYtoFbYaAWit
    NSLUPLbQcUfJY3ln

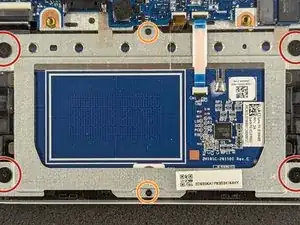

    • Unscrew 4 screws with Phillips #01 screwdriver.

    • Unscrew 2 screws with the Phillips #00 screwdriver.

    • Unlatch the trackpad connector.

    • Pull the tab on the trackpad ribbon straight out from the connector.

    • Trackpad ribbon cable can be easily damaged.

  4. 6WABUnDTHtZbDKyh
    6WABUnDTHtZbDKyh
    FXbAVsWPilEDSkF5

    • Remove 2 silver tape attached to the trackpad frame.

    • Try to not tear tape strips but does not affect trackpad performance if they are damaged.

    • Remove trackpad from laptop frame.

Conclusion

To reassemble your device, follow these instructions in reverse order.
