HP ProBook x360 11 G5 EE Charging Port Replacement

Written By: Michelle Pina
  • Comments: 2
HP ProBook x360 11 G5 EE Charging Port Replacement

Difficulty

Moderate

Steps

9

Time Required

15 - 25 minutes

Introduction

If your HP Probook x360 11 G5 EE laptop does not charge unless the adapter is positioned in a specific position, the charging port may need to be replaced. The charging port is important because it charges the battery to supply the power to your laptop.

  1. QEIOWsPCkDROf5QM
    QEIOWsPCkDROf5QM
    OX16UUCaX1WeBaDK
    2DYjVMSYnyqUauVH

    • Remove the 4.1 mm screws with a T5 Torx screwdriver.

    • Remove the 4.1 mm screws using a JIS #0 screwdriver.

  2. 255ayd2RgeXNpNJl

    • Use an opening pick to pry the corners of the keyboard deck.

  3. PgF6HxJPCtb1uDhw
    PgF6HxJPCtb1uDhw
    AZtYgHyrIVwadTIW
    6tftvJuTjRyU6OG4

    • Use an opening pick or opening tool to pry around the sides of the keyboard assembly.

  4. W5qnneYFDrJrGMQO
    W5qnneYFDrJrGMQO
    OqXBXGsQJggXi5Gh
    ZVIUeykZdRN3UXMA

    • Lift the keyboard assembly to expose two ribbon cables.

    • Lift the two plastic tabs that hold the cables in place on the motherboard

    • Slide the ribbon cables out of each connector.

  5. dLUm1qRNDq2VoFRk
    dLUm1qRNDq2VoFRk
    4d4MTWTHinrXuZoL

    • Remove the keyboard assembly from the rest of the computer.

  6. AuuYggoixAT2lYJm
    AuuYggoixAT2lYJm
    oOZiXmR25OjXtnQO

    • Remove the four 3 mm screws from the battery with the JIS #0 screwdriver.

  7. QIlxwe1aUSvmS1bS
    QIlxwe1aUSvmS1bS
    2Yj3aGUgALyrdlFR
    PblTuPxPq4dZiZW1

    • Pry the battery up from the laptop using an opening pick.

    • Lift the battery out of its place.

  8. Le6BjKL3oiDqnrdG
    Le6BjKL3oiDqnrdG
    5IYHxFkBmBZMQXdv

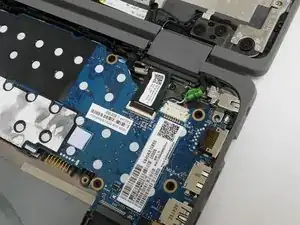

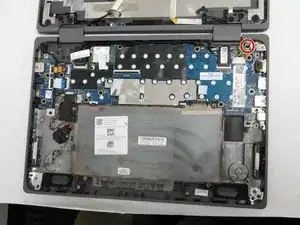

    • Remove the single 3 mm screw from the charging port using a T5 Torx screwdriver.

  9. dkdUO1UWcLD5KCJ1
    dkdUO1UWcLD5KCJ1
    mGacJCULRANKycUf
    XtTuNdD2BNM6ffaT

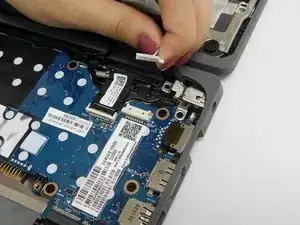

    • Disconnect the charging port wire from the motherboard.

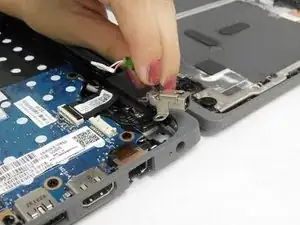

    • Remove the charging port from your device.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Michelle Pina

Member since: 26/10/21

506 Reputation

2 comments

Hi!! I have the same model of notebook with 64 giga emmc. Is it possible installing an ssd or an hdd?

Riccardo Insolera -

I followed each and every step, and realised a little too late that my laptop is a HP ProBook x360 11 G1 -and not a G5. The G1 requires the ability to de-solder the built in charging port.

On step 6, I noticed there were 6 screws holding the battery in, not 4.
Then on step 9, I noticed that the charging port is actually soldered to the motherboard and there is no visible cable attaching it to the board which can be unhooked.

Sam T -
