HP ProBook x360 11 G5 EE Wireless Card Replacement

Written By: Michelle Pina
  • Comments: 0
HP ProBook x360 11 G5 EE Wireless Card Replacement

Difficulty

Moderate

Steps

10

Time Required

15 - 25 minutes

Introduction

The guide will show how to replace the wireless card in your HP ProBook x360 11 G5 EE laptop. The Wi-Fi card allows you to connect to the internet wirelessly. If the laptop’s Wi-Fi keeps on connecting and disconnecting, has a weak connection, or simply cannot find any networks regardless of troubleshooting, you may have a faulty wireless card.

  1. QEIOWsPCkDROf5QM
    QEIOWsPCkDROf5QM
    OX16UUCaX1WeBaDK
    2DYjVMSYnyqUauVH

    • Remove the 4.1 mm screws with a T5 Torx screwdriver.

    • Remove the 4.1 mm screws using a JIS #0 screwdriver.

  2. 255ayd2RgeXNpNJl

    • Use an opening pick to pry the corners of the keyboard deck.

  3. PgF6HxJPCtb1uDhw
    PgF6HxJPCtb1uDhw
    AZtYgHyrIVwadTIW
    6tftvJuTjRyU6OG4

    • Use an opening pick or opening tool to pry around the sides of the keyboard assembly.

  4. W5qnneYFDrJrGMQO
    W5qnneYFDrJrGMQO
    OqXBXGsQJggXi5Gh
    ZVIUeykZdRN3UXMA

    • Lift the keyboard assembly to expose two ribbon cables.

    • Lift the two plastic tabs that hold the cables in place on the motherboard

    • Slide the ribbon cables out of each connector.

  5. dLUm1qRNDq2VoFRk
    dLUm1qRNDq2VoFRk
    4d4MTWTHinrXuZoL

    • Remove the keyboard assembly from the rest of the computer.

  6. AuuYggoixAT2lYJm
    AuuYggoixAT2lYJm
    oOZiXmR25OjXtnQO

    • Remove the four 3 mm screws from the battery with the JIS #0 screwdriver.

  7. QIlxwe1aUSvmS1bS
    QIlxwe1aUSvmS1bS
    2Yj3aGUgALyrdlFR
    PblTuPxPq4dZiZW1

    • Pry the battery up from the laptop using an opening pick.

    • Lift the battery out of its place.

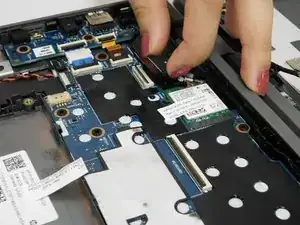

  8. PetAgtEUtfjwdHZl
    PetAgtEUtfjwdHZl
    e5psaNQJG5TZcDyR
    LQeIelMXmXVBipeT

    • Disconnect the ribbon wire from the motherboard by lifting the small flap that holds it in place.

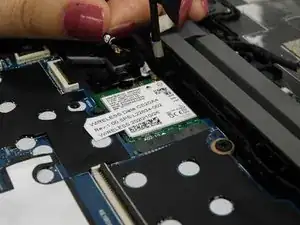

  9. A1Ak2BKJjfSOByQf
    A1Ak2BKJjfSOByQf
    T5eYDob15WEyMESQ

    • Remove both antenna cables that are attached to the wireless card.

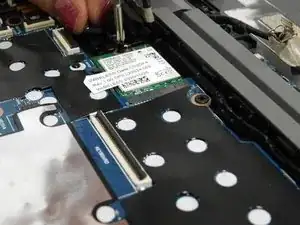

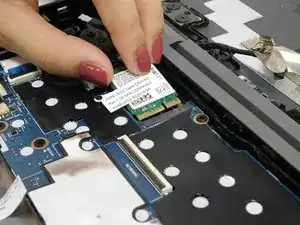

  10. 3PynexPpOi1jmrUB
    3PynexPpOi1jmrUB
    5HJF1wOQPe1JBRjA
    TxIqlPmalvpNsV6o

    • Remove the 3 mm screw that secures the wireless card using a JIS #0 screwdriver.

    • Slide the wireless card out of the slot gently.

    • Make sure not to pull it directly up as it can break.

Conclusion

To reassemble your device, follow these instructions in reverse order.
