HP Spectre x360 13-ac023dx Motherboard Replacement

Written By: Jonathan
  • Comments: 3
HP Spectre x360 13-ac023dx Motherboard Replacement

Difficulty

Moderate

Steps

17

Time Required

15 minutes

Introduction

If your HP Spectre x360 13-ac023dx laptop will not boot up after troubleshooting possibles errors, use this motherboard replacement guide.

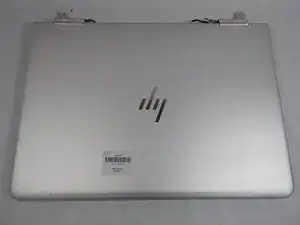

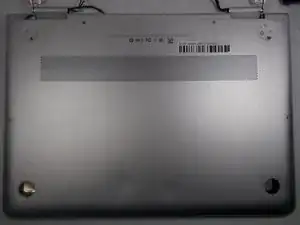

  1. 1MhkVSDsny3TRWKG
    1MhkVSDsny3TRWKG
    eRH63AJPBF1ptHMb

    • Flip the laptop over so the model sticker faces the ceiling.

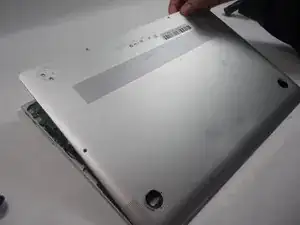

  2. JupkD6Zp6H3oNlbi
    JupkD6Zp6H3oNlbi
    T41fwcLomOIKvMQ1
    RGJjuJhSoQWBIdke

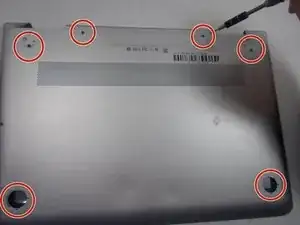

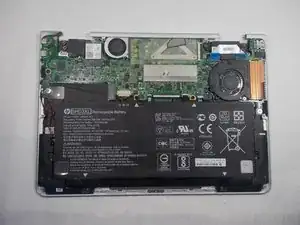

    • Use a Torx #5 screwdriver to remove the six 3.5 mm screws holding the back cover to the laptop.

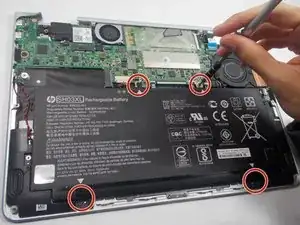

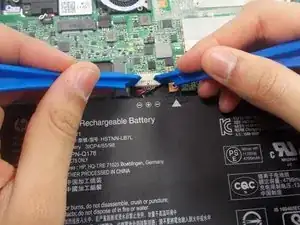

  3. qLEJDnAKgHKcl5jJ
    qLEJDnAKgHKcl5jJ
    xJPapt5LQDGWUPoW

    • Use the Phillips #000 screwdriver to remove the four 3.5 mm screws holding the battery.

    • After removing the screws, detach the battery wire from the mother board with the iFixit opening tool.

    • Then, carefully lift the battery off with the iFixit opening tool.

    Need to provide a direction in step #1 about removing the rubber pads and accessing the two screws at the bottom.

    David McCurry -

    Second that. What's the best way to remove the feet?

    Oskar Petersons -

  4. CuOFilPwAUnsUovL

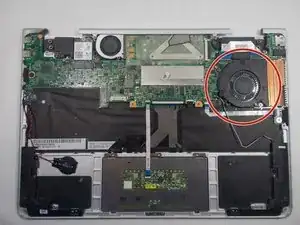

    • Locate the Cooling Fan in the device.

  5. XTFvZymTe23coGTk
    XTFvZymTe23coGTk
    E1KBXjKcOlY3XwZ5

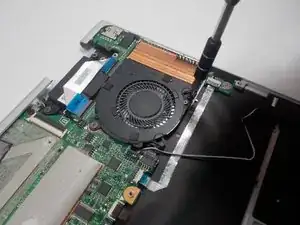

    • Use the Phillips #000 screwdriver to remove the 3mm screws holding the fan in place.

    • Remove the wires connecting to the motherboard, using the iFixit opening tool.

    • The iFixit Opening Tool is not required, but recommended

  6. hXPu4NVtnuUFKIHU

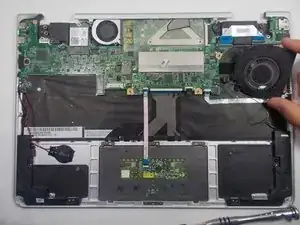

    • Remove the Cooling Fan.

  7. Hds6we1SvZ2WwlYH

    • Locate the WiFi card in the top left of the motherboard.

  8. KGAAAnY5cgQNvBCL

    • Use the Phillips #000 screwdriver to remove the screw holding the wifi card in place.

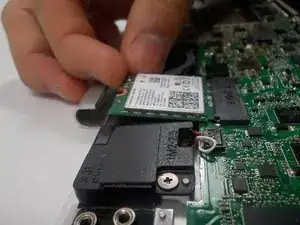

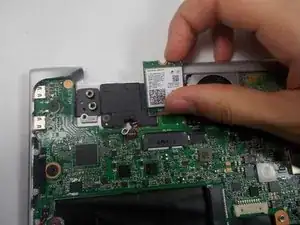

  9. nrWErJatQgoMkQJM
    nrWErJatQgoMkQJM
    QxDmQMnj61GMXkrV

    • Once the screw is removed, hold the WiFi card by it's sides and raise it up whiling sliding it out from the slot.

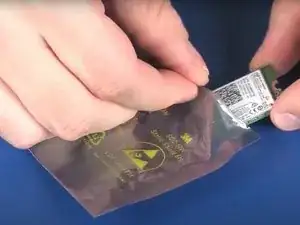

  10. ukYakjZLyfKEODAH

    • After removing the Wifi card, place the card within a static dissipative bag.

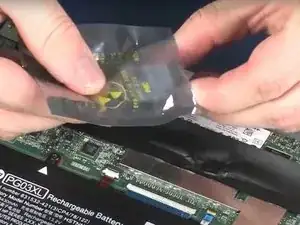

  11. n3yENpZCJJVHyEbC

    • Hold the replacement Wifi card by the edges and remove it out of the static-dissipative bag.

  12. jtwG1JBawxgEnEOQ

    • Align the notches on the Wifi card with the keys on the Wifi card slot.

    • Hold the card by the edges and slide the Wifi card into the Wifi Card slot.

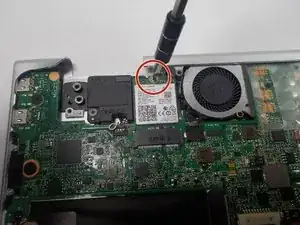

  13. HJcTxrWInfvYVrin

    • Use the Phillips #000 screwdriver to attach the screw holding the Wifi card in place.

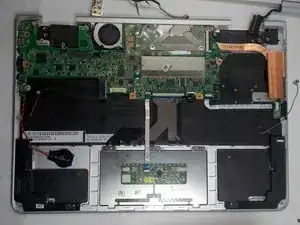

  14. QRLj11HFYIGfRQn5

    • Ensure that all other components which were previously removed are not longer attached.

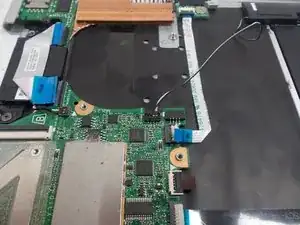

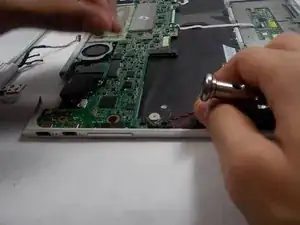

  15. qR1ZcUgOmBlJWLVC
    qR1ZcUgOmBlJWLVC
    KRFSpOkxmdsAySNX
    qMOuwttViDGhQkcp

    • Disconnect the wires which connect the motherboard to the rest of the components.

    • The black and red wire can be removed by pulling the wire upwards.

  16. QKLAP6NNEFZeWbFZ
    QKLAP6NNEFZeWbFZ
    PCnQqNEhQlYb4yu5
    dVXRBWmutU4qEk6l

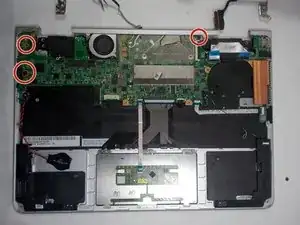

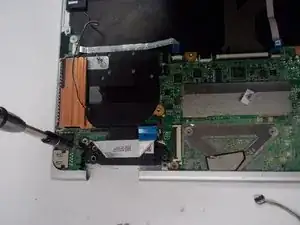

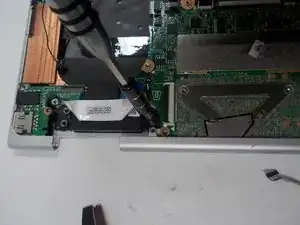

    • Use the Phillips #000 screwdriver to remove the three 3.5 mm screws which keep the motherboard in place.

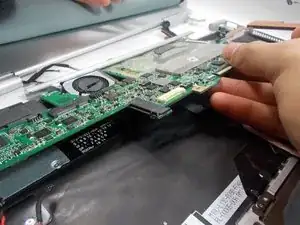

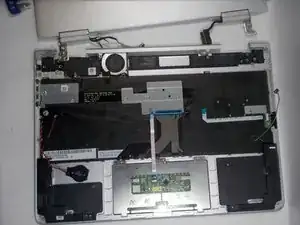

  17. umPGWaWVW1PFGUpA
    umPGWaWVW1PFGUpA
    IoGjOTbMnvDKhM6p

    • Carefully lift and remove the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
