Introduction

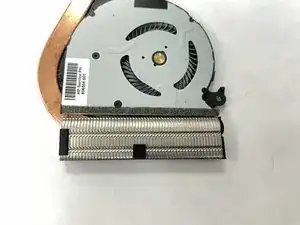

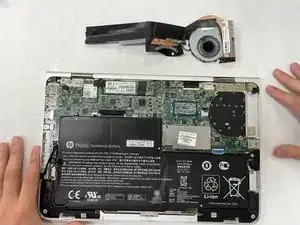

This guide instructs you on how to remove and replace the heatsink and fan assembly in a HP Spectre x360 13t-4000. Replacement of the heatsink may be necessary if the laptop is overheating.
-
-
Turn off and unplug the laptop.
-
Flip over the laptop so that the bottom backplate is exposed.
-
-
-
Use a T5 screwdriver to remove the six 3 mm screws that secure the backplate.
-
Use the same screwdriver to remove the two 7 mm screws.
-
-
-
Insert an opening tool under the bottom cover at the screen hinges, and gently pry the cover free.
-
Carefully work your way around the cover's edges to pop it off completely.
-
-
-

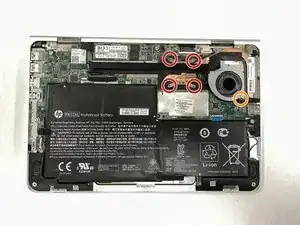

Use a Phillips #0 Screwdriver to remove the four circled 3 mm screws.
-

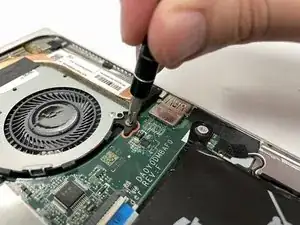

Use the same screwdriver to remove the circled 4 mm screw.
-
-
-

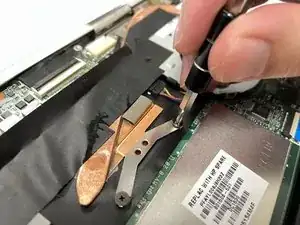

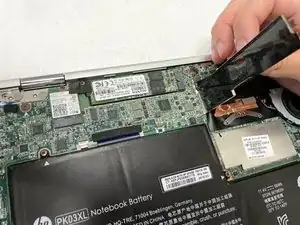

Use a Phillips #0 screwdriver to remove the last 4 mm screw under the black tape.
-

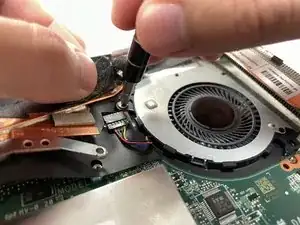

Unplug the cable next to the fan.
-
To reassemble your device, follow these instructions in reverse order.
