Introduction
Replace the Battery
- If the device is overheating, not charging, or experiencing short run times and shutdowns this may mean there is a faulty battery. You will need to open your device and replace the battery.
- Before you begin, make sure to take the time to inspect the potential symptoms that indicate the device issue is relating to the battery.
- Make sure to have a new battery that matches the systems device.

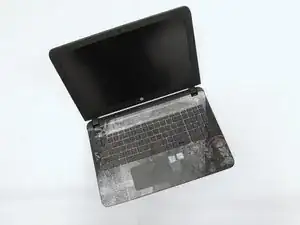

- Before you begin ensure the device is turned off and disconnected from any external power source.
- Proceed to follow the guide steps to successfully replace a faulty battery.
-
-

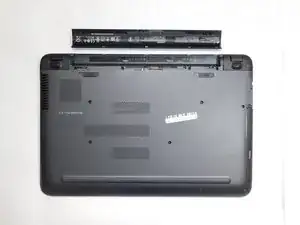

In the red is the battery and the battery's holding/locking latches.
-
Slide the latches in the direction the arrows face. This will unlock and release the battery.
-
-
-
Check the battery port on your device and make sure it is clear of debris and pins are not bent or damaged.
-
Install the new battery into the port and press down gently.
-
Once installed and you have followed the battery manufacturer's instructions, turn your device on to its upright position and boot your device.
-
Conclusion
Device should be working as usual with the new battery.
