HP Stream 13-c010nr Battery Replacement

Written By: Keegan Lapham
  • Comments: 0
HP Stream 13-c010nr Battery Replacement

Difficulty

Moderate

Steps

5

Time Required

25 minutes

Introduction

A short battery life on the HP Stream 13-c010nr is a common problem experienced. Follow this guide to do the replacement yourself.

  1. iVwZWGvMqe1VSiE1

    • Remove the five rubber feet from the bottom of the laptop with a plastic opening tool.

  2. CohQtJvDwoc2oiBV
    CohQtJvDwoc2oiBV
    PUEfR2TbmGtCYP6E

    • Remove the thirteen 5mm Phillips #0 screws from the bottom case.

  3. M5ccjpiQaC3gC4Jl
    M5ccjpiQaC3gC4Jl
    DdQdTFEpUAd5k1We

    • Flip the laptop over and open it up.

    • Wedge a plastic opening tool between the keyboard and bottom case, pry upwards to separate the two pieces.

    • Lift up the keyboard.

    • Ribbon cables still connect the two pieces.

  4. mPWXBBYMKnUOn5AO

    • Use a spudger to flip up the retaining flaps on the keyboard ribbon cable ZIF sockets.

    • Pull up the ribbon cables from their sockets.

  5. ow1tabrtjIYvPaem
    ow1tabrtjIYvPaem
    NnRLGXqDIHilWeSD

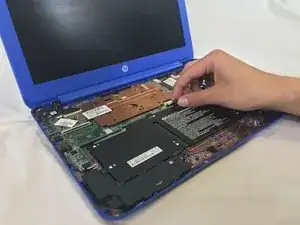

    • Remove the eight 5mm Phillips #0 screws from the battery.

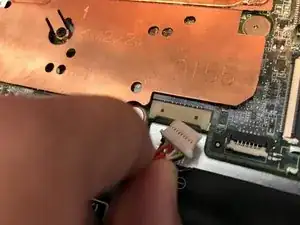

    • Disconnect the battery from the motherboard.

    • Pull the battery up and out of the laptop.

Conclusion

To reassemble your device, follow these instructions in reverse order.
