HTC Desire 826 Front Camera Replacement

Written By: Sydney Hicks
  • Comments: 0
HTC Desire 826 Front Camera Replacement

Difficulty

Moderate

Steps

6

Time Required

10 minutes

Introduction

Follow this guide to replace your HTC Desire 826 front camera.

  1. lHYhgKZYcZKepISM
    lHYhgKZYcZKepISM
    SYxHQMC5GaTjXMaW
    DEJQKfKwPGQTURN5

    • Find a seam in the back of the device.

    • Insert the plastic spudger into the seam and pry off the back panel.

    • There will be glue, so keep prying until it comes off or you may need to heat up the edges of the device to loosen the adhesive with the iOpener.

  2. aUiFSEy5tMDKLxuv
    aUiFSEy5tMDKLxuv
    pss1vG2DidfgTFSD
    SNbYrsBYSERfhvw2

    • Remove the 4.0 mm screw above the battery with a T5 Torx screwdriver.

    • Remove the metal bracket with the tweezers.

  3. 6FPGPwKTNHvNpbsf

    • Disconnect the battery cable from the motherboard with the tweezers.

  4. xdOsG5IgjpmCmVVL
    xdOsG5IgjpmCmVVL
    At4LqV2sup1Xsvxw

    • Lift the battery with a plastic spudger and remove it from the device.

  5. CE4GYoUvMuZHGJdr
    CE4GYoUvMuZHGJdr
    ajVmJycfeuoAaoXJ
    CVu6FAaZqNHBIuNo

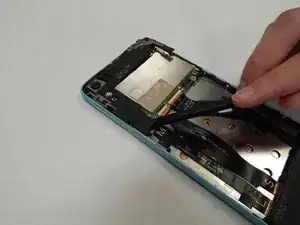

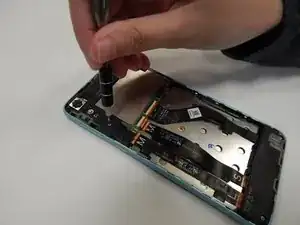

    • Use the T5 screwdriver to remove the three 4.0 mm screws as shown.

    • Once the screws are removed, pry up the top plastic panel using the black nylon spudger.

  6. hyhDNBSuZICqUwIH
    hyhDNBSuZICqUwIH
    UGqMVXWwHTjGgHtb

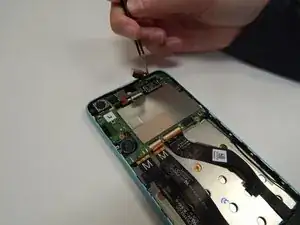

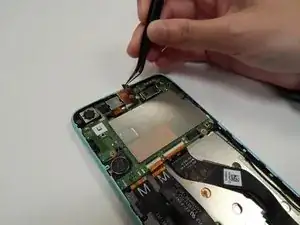

    • Use the tweezers to detach the cameras wire from the top motherboard

    • Then use the tweezers to remove the camera

Conclusion

To reassemble your device, follow these instructions in reverse order.
