HTC Desire V Earpiece Speaker Replacement

Gently pry back cover away from phone.

Lever the battery out from the bottom end first.

Use a Torx T5 screwdriver to unscrew and remove five 3.0 mm screws from the rear frame.

Use an opening tool or a spudger to gently remove the rear frame.

Remove the connector on left side of the Navigation board by unplugging/prying the orange ribbon.

Gently unplug and remove aerial cable (black antenna) from bottom plug.

Nav Board will be stuck down by glue.

Pull gently from the right end of the board, being careful of its flexibility.

Unplug the vibration motor shown from the white plug on the motherboard.

You will probably need tweezers to do this.

Gently remove the motor from its housing in the phone’s chassis.

The easiest way to do this is to lever the motor out by its rotating end using the tweezers.

Remove the black information sticker if this is the first time opening the handset.

You should now see a black ribbon cable, which was connected at the left to the Nav board, and on the right, to a gold ribbon cable which goes to the screen.

Unlock the gold ribbon cable connecting screen to logic board by lifting the locking tab at the back of the socket.

For this you may wish to use a spudger or tweezers.

Disconnect gold ribbon cable connecting screen to logic board by pulling cable out gently.

Gently unstick black ribbon cable from the chassis.

Unscrew the 2mm silver screw from top left.

Use a Phillips PH00 Screwdriver for this.

Gently pry logic board from the casing by lifting the left side up, as if there was a hinge on the right, folding it over the right edge where you will see a gold/orange ribbon cable.

Remove the gold ribbon cable by lifting tab at the back of the socket, using a spudger or tweezers.

Gently pull the logic board to the right and it will disconnect from the chassis.

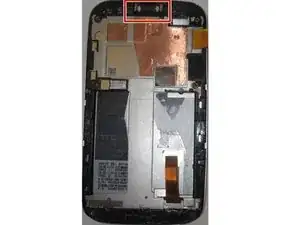

At the top of the phone is the speaker, with two gold coloured connectors.

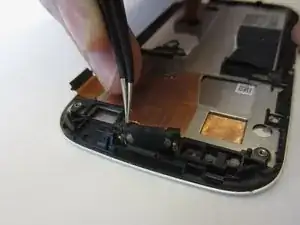

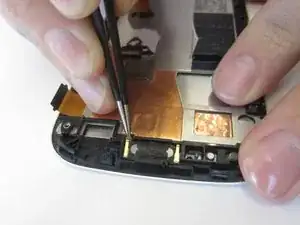

At the right hand side there is a space where using the fine tweezers you can gently pry the speaker from it’s housing.

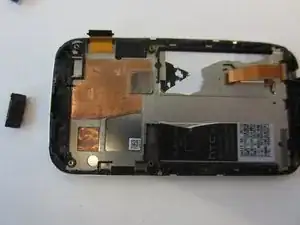

Make sure you don't lose the speaker, as it is very small and can stick to metal objects.
