HTC Ozone Motherboard Replacement

Written By: Marco Jokada
  • Comments: 1
HTC Ozone Motherboard Replacement

Difficulty

Moderate

Steps

8

Time Required

3 - 5 minutes

Introduction

The motherboard is the main internal component which integrates all the other internal components (i.e. led display, processor, keyboard, etc.)

  1. TVpfSATMybvOeejB

    • Flip the phone over to have the rear cover facing up.

    • The camera lens should be towards the top of the phone.

  2. fAde1lgLwvs5THna
    fAde1lgLwvs5THna
    tZQJNEZhxFkIlI3R

    • Slide the cover up, towards the top of phone, to unlock the battery cover.

    • Lift the cover off phone and remove it.

  3. ivVUacMXhrULJhg1
    ivVUacMXhrULJhg1
    4wZApRpgFtBfvhn6
    Z3eNXByO1O2BytQE

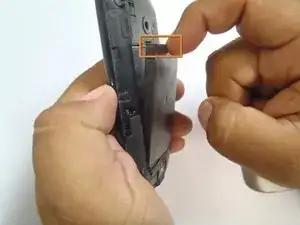

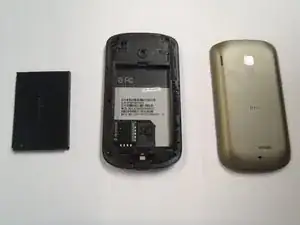

    • Use your finger to push the top of the battery downwards and lift the battery out of the phone.

  4. lob4Yo6sJ2LNMaeZ
    lob4Yo6sJ2LNMaeZ
    XUvIBDeqS3I5GUY2
    R5cM4NYJib16vc3p

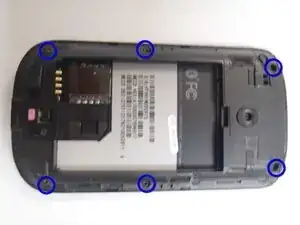

    • Remove the six Torx #5 screws that are securing the rear frame.

  5. FbOWgOAcYrulIdrT
    FbOWgOAcYrulIdrT
    wPKdOoJOjSkvJEau
    nEweqagB12qwPgGY

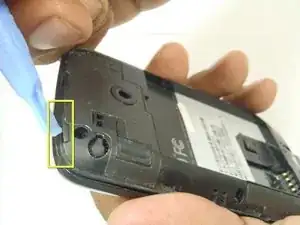

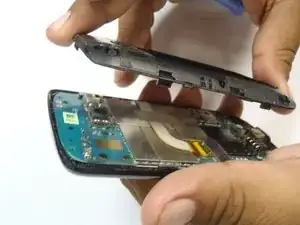

    • Pry the frame open, releasing the eight plastic tabs around the edge of the frame, using the plastic opening tool.

    • A plastic card can be used instead of the plastic opening tool.

  6. Vtc1XOoKruMdJQOi
    Vtc1XOoKruMdJQOi
    LxkoBOOxFtxQvRUl

    • Remove the single Phillips #0 screw that is securing the motherboard to the front case of the phone.

  7. kEpxfSHgCGQ3ObW1
    kEpxfSHgCGQ3ObW1
    U5GLfntA6nhfrIRy

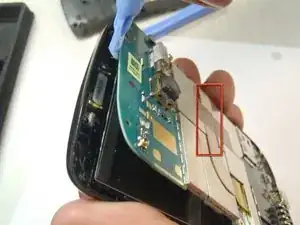

    • Pry the motherboard away from the front of the plastic case using a plastic opening tool.

    • Be careful not to break the ribbon cable when prying away the motherboard.

  8. NR4IX5ScZfOOKfER
    NR4IX5ScZfOOKfER
    rMghQUGvIKU2mSkb
    jZLHxuMeWNEBVTl1

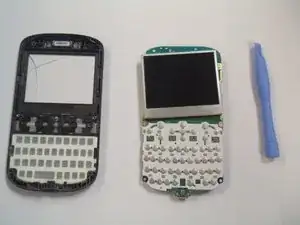

    • Remove the plastic cover from the LCD display and the motherboard.

    • The Motherboard and the LCD are still attached together.

Conclusion

To reassemble your device, follow these instructions in reverse order.
