Introduction
The procedure is difficult. You must have experience to do this !!!
How to disassemble / make apart and change broken or not working touch screen. Video tutorial:
-
-

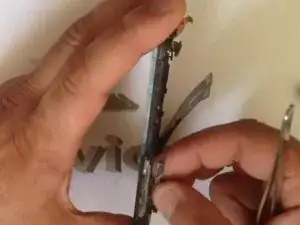

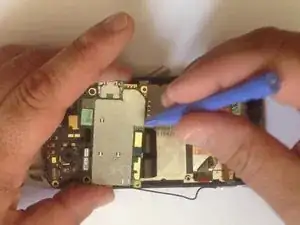

Disconnect the LCD display cable and the menu buttons cable.
-

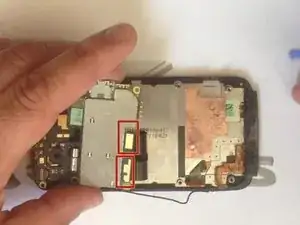

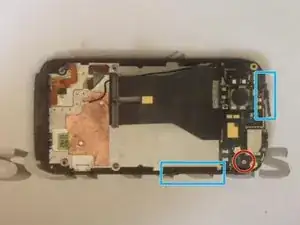

There are another two cable connector between the main board and the additional upper board.
-
-
-

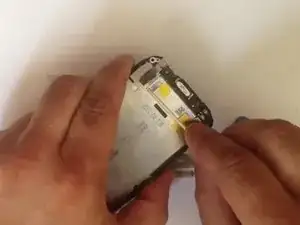

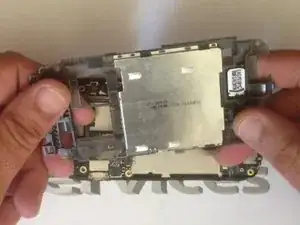

In case to remove the upper board, unscrew the screw and release the power button flex cable and the volume up/down flex cable.
-

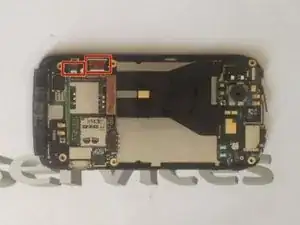

In another side of the board is the touchscreen flex cable connector.
-
-
-

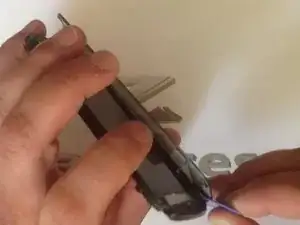

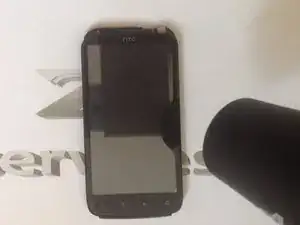

Use hot air to warm the touchscreen.
-

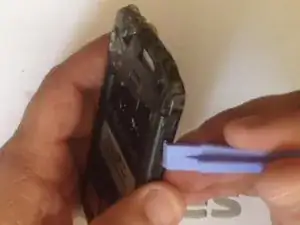

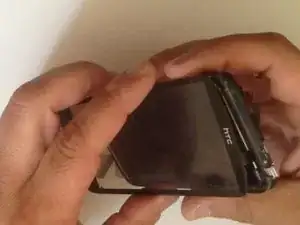

With a plastic tool start to separate the touchscreen.
-

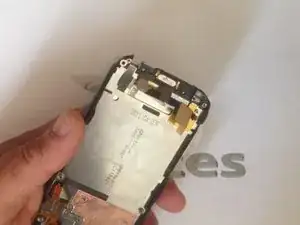

Gently release the menu flex cable from the touch screen.
-
-
-

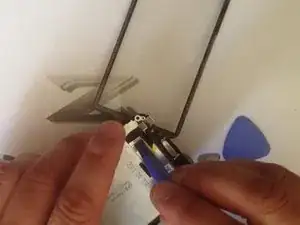

The touchscreen flex cable go between the LCD display and the upper case / housing.
-

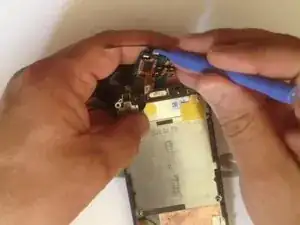

Again use a plastic tool and hot air to free up the cable.
-
Work carefully to avoid breaking the display.
-

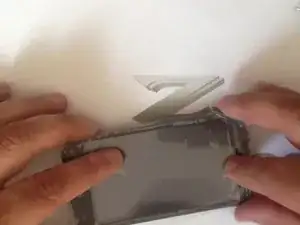

To reassemble your device, follow these instructions in reverse order.
