Hamilton Beach 25460Z Thermal Switch Replacement

Written By: Forrest Rodeman
  • Comments: 2
Hamilton Beach 25460Z Thermal Switch Replacement

Difficulty

Moderate

Steps

7

Time Required

15 - 20 minutes

Introduction

This replacement requires you to be confident with simple wiring as well as basic soldering skills. If you are unfamiliar with soldering and de-soldering, make sure to check out iFixit's Soldering Skills page before attempting this replacement!

  1. eieudpyoAhpknDnD
    eieudpyoAhpknDnD
    JRyq1dJjV14dtnMW

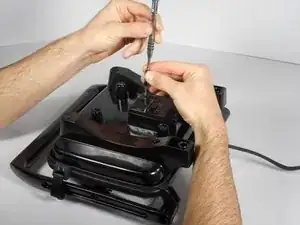

    • Unplug your device before proceeding with disassembly.

    • Remove the four 14mm screws from the bottom of the Panini Press using the T10 Screwdriver.

  2. sAtRmk2nR3BjSnJV

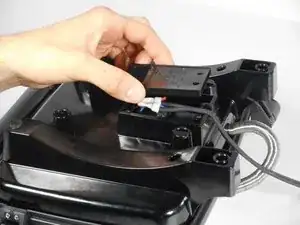

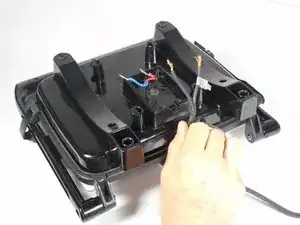

    • Lift up the plastic cover to expose the plug wiring.

    • Mark the plug wire connected to the red wire with a piece of tape. This will be used as a reference for reassembly.

    it doesn't matter red or blue it's just AC power

    Qatra -

  3. gMaWRjlU1b3tjRcK
    gMaWRjlU1b3tjRcK
    nNqWuYHuqm5F3DFI
    Z2Q12CIWGMN4vqum

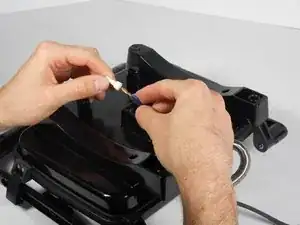

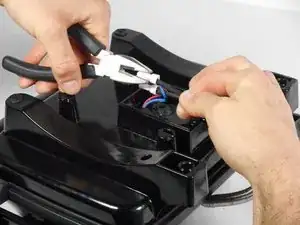

    • Use the pliers to pinch the widest point of the cap. This should be done opposite of the already existing crimps.

    • Slide off the white cap.

    • Repeat these steps for the second white cap.

  4. 4vhXfQ3RMYLlPhKj
    4vhXfQ3RMYLlPhKj
    Kc2wLRGImKWkGdAs

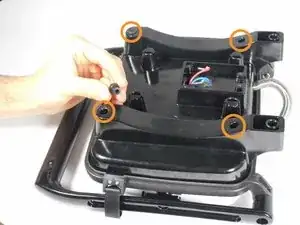

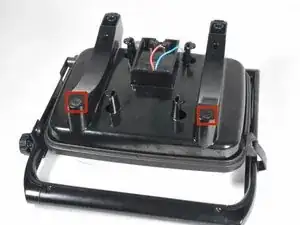

    • Remove the two rubber screw covers from the bottom of the Panini Press.

    • Remove the four uncovered 10mm screws with the PH2 Screwdriver.

  5. LQpvH5f3GGAR3LV6
    LQpvH5f3GGAR3LV6
    HyMFBRfEXh5eMlGc

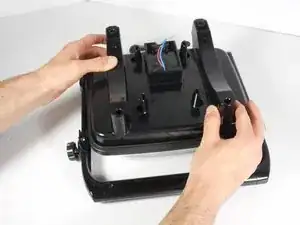

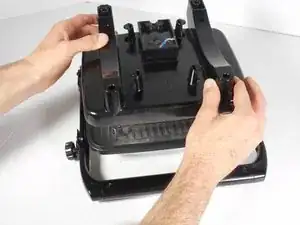

    • Lift the plastic lower heating element up and place to the side for reassembly. You have now disconnected the plug wiring completely.

  6. V5DM5YM2k5Tupapx
    V5DM5YM2k5Tupapx
    UjKWcbWWn3Uv6gJ4

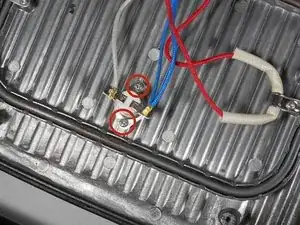

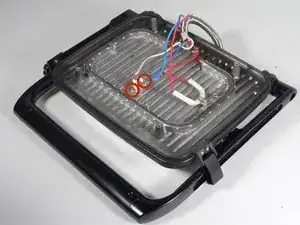

    • Remove the two 10mm screws connecting the thermal switch with the PH2 Screwdriver and a bit of force.

    • These screws may be difficult to remove.

    De cuánto es el valor del térmico ?

    mario pinky vargas perez -

  7. JwAItUtPXhor1uLv

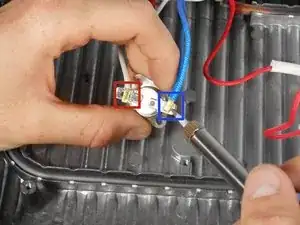

    • De-solder the connection between the wires and the thermal switch.

    • Refer to this page if you need to brush up on your soldering skills.

    • Replace the thermal switch.

    • The lead on the red (with the small hole), marked in red, connects to the white wire.

    • The lead on the right, marked in blue, connects to the blue wire.

Conclusion

To reassemble your device, follow these instructions in reverse order.
