Hamilton Beach 51101BA Power Cord Replacement

Written By: Andrew Huff
  • Comments: 1
Hamilton Beach 51101BA Power Cord Replacement

Difficulty

Moderate

Steps

4

Time Required

5 minutes

Introduction

In this guide you are going to learn how to take out the current power cord in order to replace it with a new one.

  1. lirWQcaaBCFEDtta
    lirWQcaaBCFEDtta
    CX1telK4Lrmy2LSE
    PhXhcPcIAgDdkK1k

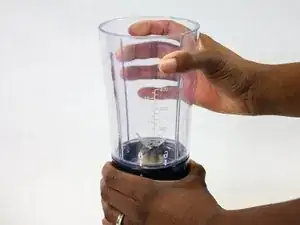

    • Remove container from base.

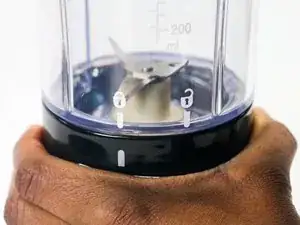

    • Hold the blender and the container, then twist the container in a clockwise motion.

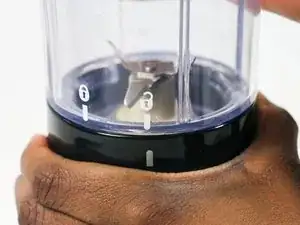

    • Make sure to follow the lock and unlock markings on the container.

  2. NCDBGRjAkKNPHToO

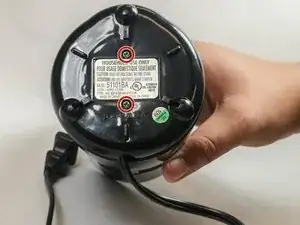

    • Turn the blender so the bottom is facing you.

    • Using a Phillips #2 screwdriver, remove the two 5 mm Phillips screws from the base.

  3. QRSQYYpnpTe5NeCi

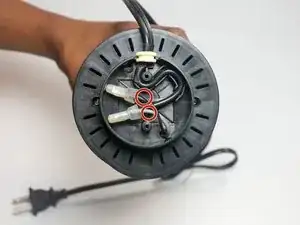

    • Lift the two wires from the motor platform.

  4. QCZWjSpQqmxprABF

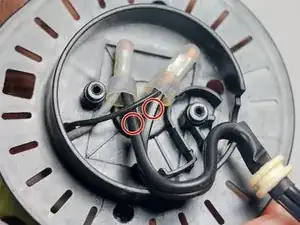

    • Using the wire cutters, cut the end of the thick black wires.

    ideally and hiigher safety you can squeeze the terminals with mole grips or pliers and this will release the grip on the cable ends. Then your new cable ends can be refitted and re-squeeze for terminal ends together.

    Total Solutions -

Conclusion

To reassemble your device, you must solder the new power cord to the thin black and thin gray wires, and follow the steps in reverse order. Requires soldering skills.
