Hamilton Beach 70740 Gears Replacement

Written By: Angel
  • Comments: 2
Hamilton Beach 70740 Gears Replacement

Difficulty

Easy

Steps

4

Time Required

10 minutes

Introduction

Replacement of the drive gears. Do not remove grease as it helps the gears move smoothly.

  1. G2OINTjXanvZHGDQ
    G2OINTjXanvZHGDQ
    NlDOZXHcKXHkYCF2

    • Turn the bowl counterclockwise and lift.

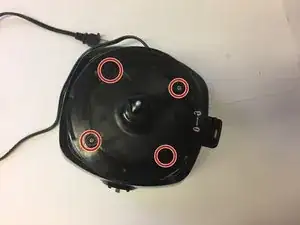

  2. doaHESZEUuB5CmZk
    doaHESZEUuB5CmZk
    jCTDqIP2whZ3bPDX

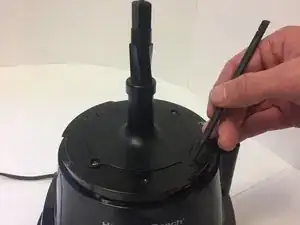

    • Use the nylon spudger to remove the plastic screw covers.

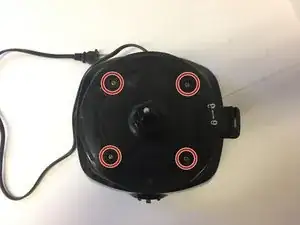

  3. 4ETy1wgOMmknbVxr
    4ETy1wgOMmknbVxr
    HZDZCnXO5j4pWPWK
    wKTGMVwlsESr3dMk

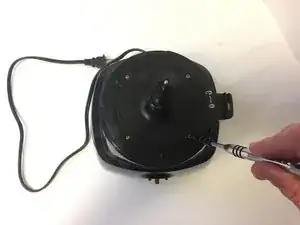

    • Using a #2 Phillips head screwdriver, remove the four 10 mm screws and pull the shaft straight upwards to uncover gears.

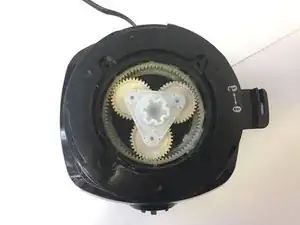

  4. waVJMpInvHGPMCIF
    waVJMpInvHGPMCIF
    jlbYTFjD4LZOK3my

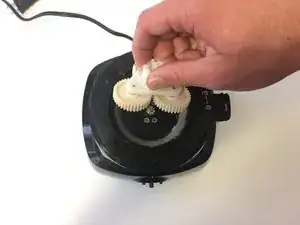

    • Firmly grasp center piece of gear mechanism and pull straight upward.

    Good instructions but where do I get the new gears?

    Barbara Justice -

    Yes where do we get the replacement gears.

    sherrygalloway007 -

Conclusion

To reassemble your device, follow these instructions in reverse order.
