Introduction
Replacement of the power cord. Make sure to keep the processor unplugged until finished with replacement.
Tools
-

                  -

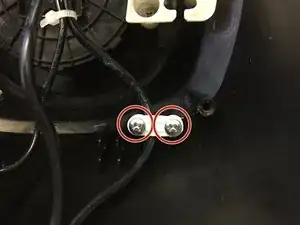

            Using a #2 Phillips head screwdriver, remove the two 11 mm screws from the base.
-
            Pull suction cups straight out.

-

-

                  -
            Remove rubber caps using the heavy duty spudger.
-
            Remove the four 11 mm screws using the #2 Phillips head screwdriver.
-
            Pull base straight out.

-

-

                  -

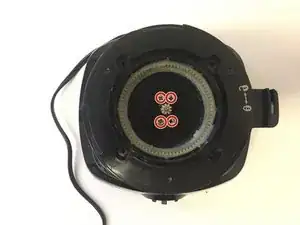

            Using a #2 Phillips head screwdriver, remove the four 9 mm screws.
-

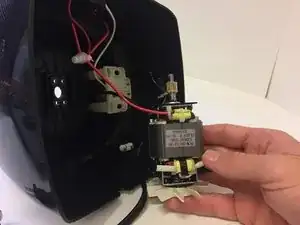

            From the open base pull the motor straight out.

-

-

                  -

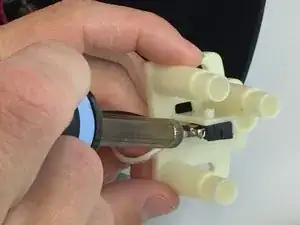

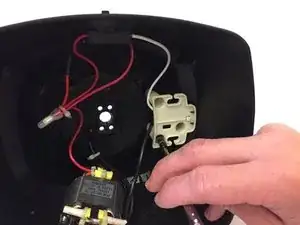

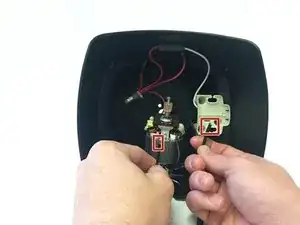

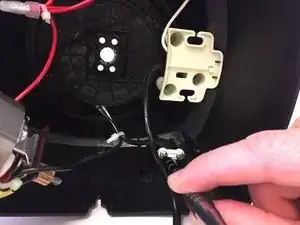

            Using the wire stripper crimping tool cut the black wire connection from the power cord to the motor and then rewire the new power cord to the motor.

-

-

                  -

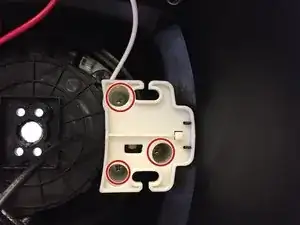

            Remove the three 12 mm screws using the #2 Phillips head screwdriver.
-

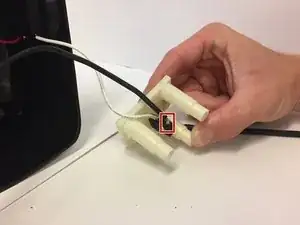

            Remove the plastic piece by pulling straight up.

-

To reassemble your device, follow these instructions in reverse order.
