Hello Zee Smart Core Battery Replacement

Written By: 9021007
  • Comments: 0
Hello Zee Smart Core Battery Replacement

Difficulty

Difficult

Steps

7

Time Required

No estimate

Introduction

Do this at your own risk. This battery is dangerously soldered down, so replacements can be difficult, and is only for those who have experience with soldering.

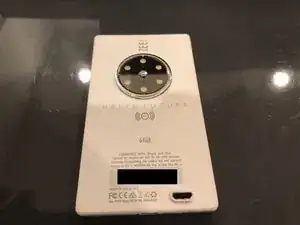

  1. AQqhcBXKxtwhZxcZ
    AQqhcBXKxtwhZxcZ
    CyWNdDQXv2nmTCFU

    • This particular model is 64GB

    • Do not operate on this device if:

    • The battery has swelled or expanded

    • The battery is hot

    • The battery is charged (drain the battery before opening)

    • The battery has been punctured

    • The battery has leaked

    • The device is warm or hot to the touch

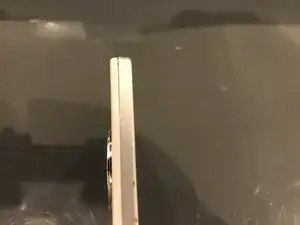

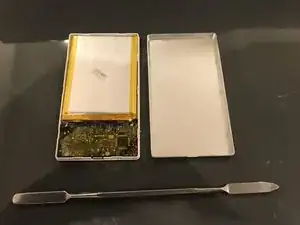

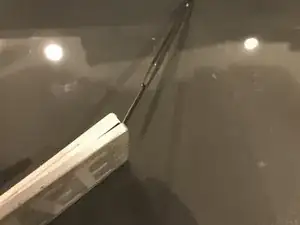

  2. rkwyLcNSjKtwJcEj
    rkwyLcNSjKtwJcEj
    6SPIvGaZlZqOCeFf
    ffB1niMQMZadKHpC

    • Use a metal spudger to get inside.

    • A corner is a good place to start.

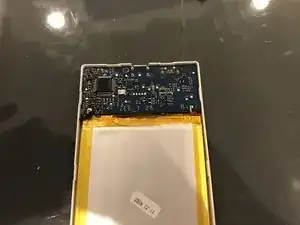

  3. UaIZLCI2KvaGd1Gd
    UaIZLCI2KvaGd1Gd
    sXT5QSNlMMvSoYpX

    • Use the pointed tip of your metal spudger to unscrew the 2 screws

    • Make sure to replace the circuit board protective film during reassembly

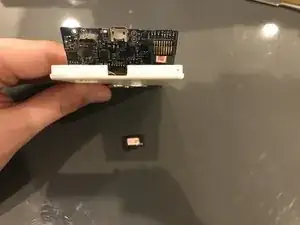

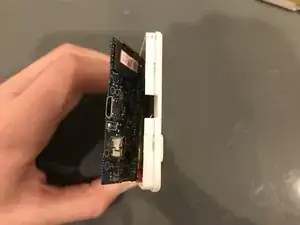

  4. wNggPffZTqGDr4L6
    wNggPffZTqGDr4L6
    dYIAPP4d5MZfLnTa

    • Here's MicroSD card that you can upgrade if you want!

    • Pause here if you wish to do so.

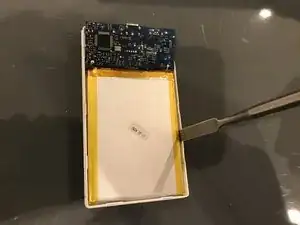

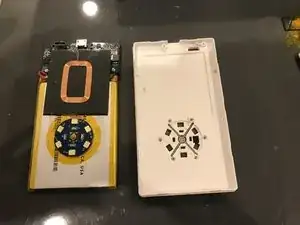

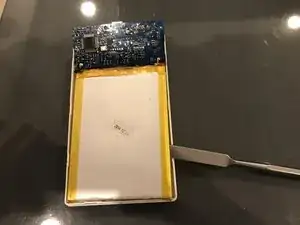

  5. U3pJULJ21K2cWv3N
    U3pJULJ21K2cWv3N
    vPSkFMqNZeoyMHZh
    gmpbK2Kui2SDVQNI

    • Pry the battery up with your metal spudger.

    • DO NOT PUNCTURE THE BATTERY

    • There are no strong adhesives, but there is tape holding the battery in.

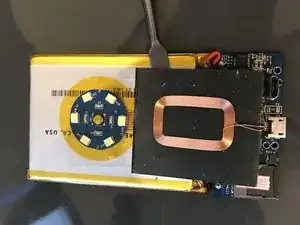

  6. WQMbRwClhc1XrHpN
    WQMbRwClhc1XrHpN
    TvOt52lnqn1vJ5nT

    • BE CAREFUL

    • This may be a point of no return. Proceed at your own risk

    • Use your metal nudger, or any other tools that can help you, in order to remove the Qi Charger and Light Array

    • Be careful not to puncture the battery

    • Be careful not to cut the Light Array Ribbon Cable

    • Be careful not to cut the Qi Coil or its connecting wires

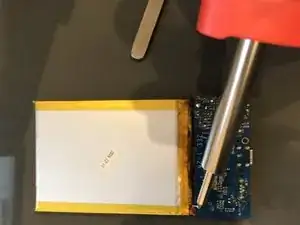

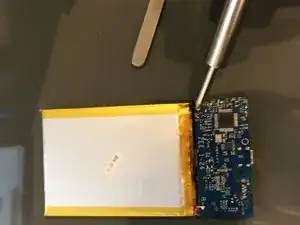

  7. fb5vHBuJsZOlHHIR
    fb5vHBuJsZOlHHIR
    S1jIuYBIaK3mwTK1

    • Grab a soldering iron. This is about to get even harder.

    • Use your favorite desoldering method to remove the battery from the circuit board.

    • BE CAREFUL NOT TO PUNCTURE THE BATTERY

    • DO NOT PUNCTURE THE BATTERY PROTECTIVE CIRCUIT

Conclusion

To reassemble your device, follow these instructions in reverse order.
