Hisense Sero 7 Pro Speakers Replacement

Written By: Logan Phillips
  • Comments: 1
Hisense Sero 7 Pro Speakers Replacement

Difficulty

Easy

Steps

5

Time Required

5 minutes

Introduction

Replacing the speakers is simple enough. All that is required is a plastic pry tool and a few

minutes of time. It is recommended to perform this procedure in a will-lit area, as there is not

much contrast between many of the components on this device.

  1. UhWOrpOSWLL1FjgR
    UhWOrpOSWLL1FjgR
    Eggg5HtFpKXQJJHt

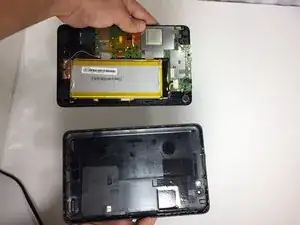

    • Turn tablet off before dissembling it.

    • Use caution when handling device if screen is cracked.

    • Using a plastic opening tool, pry open the back cover from the tablet.

    • An extra set of hands may be required.

  2. PqE4YAkNCn3MuEPo
    PqE4YAkNCn3MuEPo
    vnsOsKLI2ddVMcSK

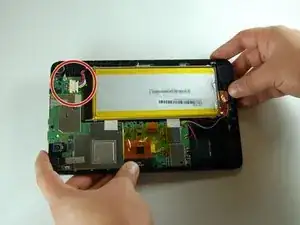

    • Use a spudger to disconnect the battery from the motherboard.

    Hola saludos una pregunta para que sirven los cables amarillo azul y blanco?

    jvelazquezramos1 -

  3. QGo1qNIZ5jx3AfyA
    QGo1qNIZ5jx3AfyA
    ShlBZSfapdiCb2DU

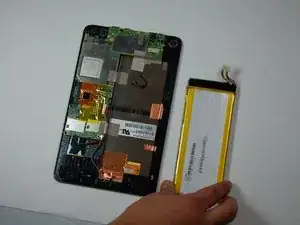

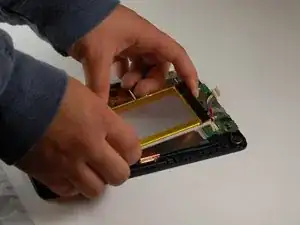

    • Using a plastic opening tool, carefully place under one corner of the battery.

    • Move around edges of the battery to lift it off of the tablet.

    • Remove battery from tablet.

  4. UMOXGUsmsZnt4Uph
    UMOXGUsmsZnt4Uph
    VcS1xDmTjahYRQXw
    1XBa1SFMw5lwcQvG

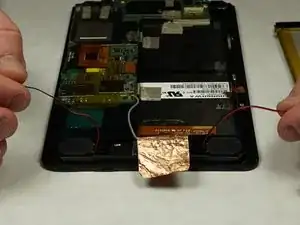

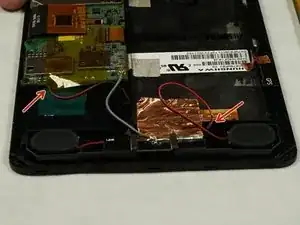

    • Peel back the film holding the speaker wire in place

    • Detach both wire connectors

  5. We2DJlRwYOMSx1lU

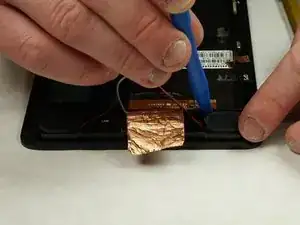

    • Using a plastic opening tool, carefully place under one corner of each speaker

    • Remove both speakers

Conclusion

To reassemble your device, follow these instructions in reverse order.
