Hot Tools HPK12 Heating Plate Replacement

Written By: Nathan Schwartz
  • Comments: 0
Hot Tools HPK12 Heating Plate Replacement

Difficulty

Moderate

Steps

10

Time Required

25 minutes

Introduction

This guide will show you how to replace the hot plates on your HPK12. Do not begin working on your device without unplugging it from the wall.

  1. 5Ythb5Ar3QBSHky4
    5Ythb5Ar3QBSHky4
    rXxf24pbKURHfZGi
    5CarmTcJgS2BnKpR

    • Remove round plastic cover near cord base by prying under the side with the metal spudger.

    • Flip the device and remove the other round plastic cover near the base of the cord.

    • Use the Phillips #1 screwdriver to remove the 5.5mm PH1 screw and washer under the plastic cover and set both aside.

  2. mJSeTiWxRwIph3rU

    • Use the metal spudger to push the center pin through to the other side.

  3. KVFYERgBMSktRMVi
    KVFYERgBMSktRMVi
    tMCpCHB5jv3TgSr3

    • Lift back plastic cover to expose spring assembly.

    • Be careful not to damage the power cord by bending or twisting it too much while performing this step.

    • Grip the exposed end of the spring assembly and remove it.

    • The side with the two ends of the spring goes into the recessed area of the iron

  4. GWcOnX23rQKIZCMT

    • Use the JIS #0 screwdriver to remove the two 3.5mm “J0” screws that attach the control assembly cover to the flat iron base.

  5. tfvp4SscHjbjh6Bq
    tfvp4SscHjbjh6Bq
    j2iCAIqXe2BpUI1n
    MkHQxvSOff6nY4kR

    • Lift upward on the control assembly cover to remove it from the flat iron base.

    • Remove dial and switch cover and set aside.

  6. fwlRKkl1HG1yQZV1
    fwlRKkl1HG1yQZV1
    3ZfSaXXcKWAZTG1P
    qajXDxKJctEKvysG

    • Use your JIS #0 screw driver to remove the two 6mm “J0” screws that are attached to the flat iron base and set them aside.

    • Lift the backing plate upwards to remove it from the flat iron.

    • Use the Phillips #0 screwdriver to remove two 4mm “PH0” screws that attach the circuit assembly to the flat iron base.

  7. NMrIZQRFslm1YoFd

    • Lift plate and circuit assembly away from flat iron case.

  8. Es2bUs4oPO5L6gJQ

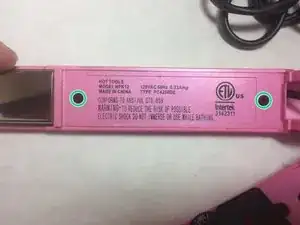

    • Flip device to access the non-control assembly flat iron arm and remove two 3.5mm “J0” screws that attaches cover to flat iron base.

  9. 5ujsl3XX5UkWLxux

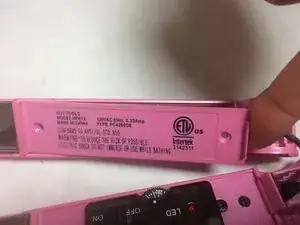

    • Lift cover from flat iron case.

  10. wM4CLmm1RHcUnnZp
    wM4CLmm1RHcUnnZp
    kMafMpWG6eUUtpvT

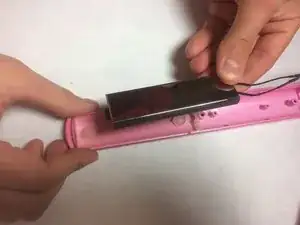

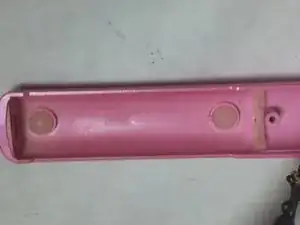

    • Lift heating plate away from flat iron case.

Conclusion

To reassemble your device, follow these instructions in reverse order.
