Hover-1 Folding E-Scooter Deck Replacement

Written By: Nicolo DiFronzo
  • Comments: 3
Hover-1 Folding E-Scooter Deck Replacement

Difficulty

Moderate

Steps

13

Time Required

40 minutes - 1 hour

Introduction

Is your deck on your Hover-1 Folding eScooter damaged? If so here is a guide to help you replace it with a new one.

  1. 1mjfeAVWE3xPQoU3
    1mjfeAVWE3xPQoU3
    ZnAN2xCVbsIGhSSx

    • Remove either of the two 0.2 mm axle screws by using a hex bit 4.0 by turning clockwise.

    • The two screws are the same thread so find the screw that has the least torque. Only that screw will be able to removed in this step.

    • Turn the hex bit 4.0 counterclockwise to reassemble the axle screws.

  2. 4s5RWN5vRnJLpSP3
    4s5RWN5vRnJLpSP3
    tAZYD32KHU6jNfTF
    VGx22kUTTphCeqos

    • Slide off the plastic side panel.

    What is the Pat number of this plastic side panel?

    bobdub -

  3. MBWbBg3s4trjfhEv

    • Use a hex bit 4.0 to screw back in the 0.2 mm screw as tightly as possible by turning clockwise.

    • You will need to hold the other screw you are not replacing with an additional hex bit 4.0, so that the screws don't spin freely.

  4. OANoFASwOVUsgXDN

    • Flip over the scooter and use the hex bit 4.0 to remove the other 0.2 mm screw.

  5. 3qJ5B6mFOUiPmCrf
    3qJ5B6mFOUiPmCrf
    AbnChPKh3WYJGigs
    mXfrHDqIjevkf522

    • Slide off the other plastic side panel.

  6. AMIL5eV1TTnLBIqA

    • On the same side you removed the screw, use the bit extender to push down on the axle inside the wheel.

    • The axle pops out and the wheel easily comes off.

    • Two washers will pop out with the axle.

  7. xvf4ttbyCPan6sYX
    xvf4ttbyCPan6sYX
    cELBCNQZNtMvbIcc

    • Remove the two 25mm screws by twisting a Phillips #2 screwdriver counterclockwise.

    • Twist the screwdriver clockwise to reassemble.

    • There are also two nuts that secure the screws.

  8. ILxqGqRhDMMDZCEH
    ILxqGqRhDMMDZCEH
    G4Shkn4ZqEWvQdsR
    XeB2CVhNvJklYcj1

    • Wobble to remove the brake step.

  9. dgIugrSkKMY6vyC5
    dgIugrSkKMY6vyC5
    oDR2LU6r4eXWkRfR

    • Remove the two 8 mm screws by twisting a Phillips #2 screwdriver counterclockwise.

    • Twist the screwdriver clockwise to secure the screws.

  10. xYcADTm1Fy4yaHEs
    xYcADTm1Fy4yaHEs
    nFbryJONZTbYBW25
    rjCFKoFRhFxc5WMO

    • Remove the brake pad.

  11. WSrUsxKlxQgFBNZA
    WSrUsxKlxQgFBNZA
    SDdTumE6ZxAOj3sJ
    TOTqPYaiJpx2TlbU

    • Hold the two 10mm nuts in place with a 10mm wrench.

    • Remove the two 33mm bolts connected to the 10 mm nuts by turning a hex 4.0 screwdriver counterclockwise.

    • The nuts are on the bottom of the deck.

    • Turn clockwise to reassemble the bolts.

  12. bWp5xs6nKGObEruT
    bWp5xs6nKGObEruT
    BIIxvf1EZUX6sxAR

    • Fold the scooter by releasing the latch and pushing the handlebars to the rear of the device.

  13. eWmSN6QJWtgUbEZC
    eWmSN6QJWtgUbEZC
    GEBbEFXRJPQmVuBC
    YdC1DQmKJBVQFHKO

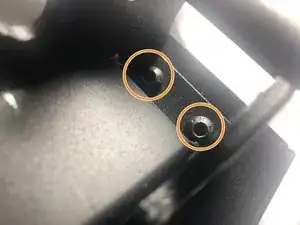

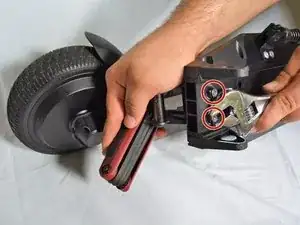

    • Hold the two hex nuts in place with a 10mm wrench.

    • Remove the next two 33 mm bolts attached to the 10 mm hex nuts by turning a hex 4.0 screwdriver counterclockwise.

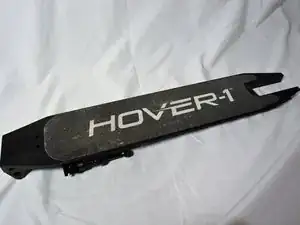

    • The deck will fall off after you remove the final bolts.

    • Turn the hex bit clockwise to reassemble.

Conclusion

To reassemble your device, follow these instructions in reverse order and use the new deck instead.
