Introduction
The pads on Hover-1 Matrix are weight sensitive, so when they sense weight, the hover board starts to move automatically. Overused pads must be replaced for the Hover-1 Matrix to move when there is a rider.
Tools
-
-

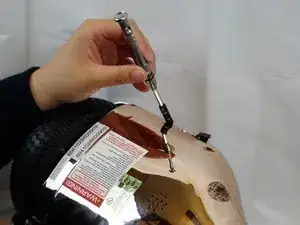

Remove the screws on the back of the hoverboard using a Phillips #1 screwdriver.
-

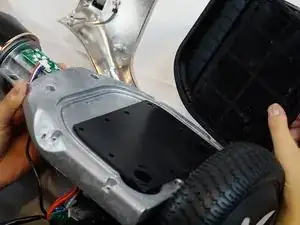

Remove the back shell from the hoverboard.
-
-
-
Remove the screws from the metal layer inside the hoverboard using a Phillips #1 screwdriver.
-
-
-

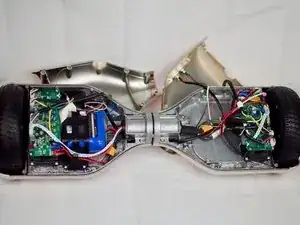

Start by identifying the motherboard, which is the green pad shown in the picture.
-

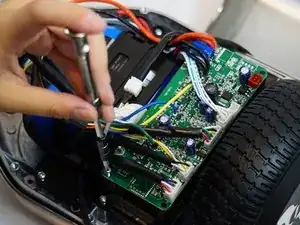

Remove the screws on the corners of the motherboard with the Phillips #1 screwdriver and take it off.
-

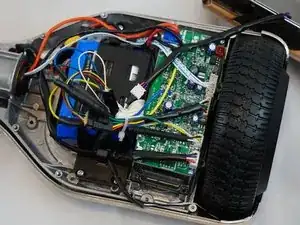

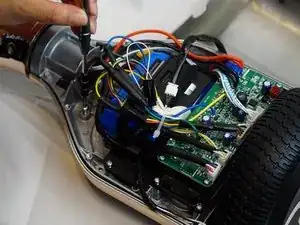

There are cables attached to the motherboard so go ahead and unattach them.
-
-
-

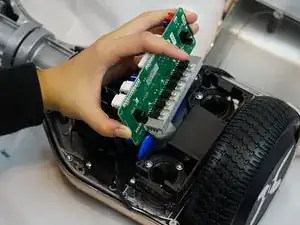

Use picture 1 as a guide and move the motherboard to the other side.
-
Identify the two black rubber buttons that are shown in the second picture.
-
Remove the two rubber buttons using the Phillips #1 screwdriver.
-
-
-
Removing the rubber buttons in the previous step allows you to take the pad off.
-

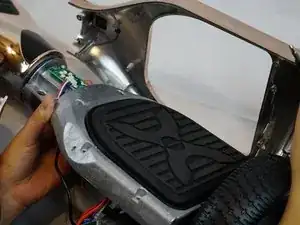

Finally, take off the old pad and put on a new pad.
-
To reassemble your device, follow these instructions starting with step number 6 and finishing with step number 1.
