How to Assemble Sigrow Soil Pro Mini

Written By: Sigrow
  • Comments: 0
How to Assemble Sigrow Soil Pro Mini

Difficulty

Easy

Steps

7

Time Required

5 minutes

Introduction

  1. OKADYbVkjEPMwQX5

    • Make sure you have all the necessary parts to assemble the Soil Pro Mini.

    • Soil sensor

    • Battery

    • PCB

    • Wireless charger

  2. CvmkhFXTI5PIJjGM
    CvmkhFXTI5PIJjGM
    fZcgFi2LRyGHLD2b
    enXUEuxZpEcTTKxa

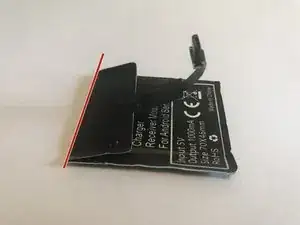

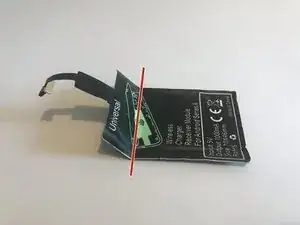

    • Carefully fold the wireless charger just above the words "Wireless Charger".

    • There are two parts inside the wireless charger. The fold is placed inbetween these two parts.

  3. D2pqqwnfmPUGHPt3
    D2pqqwnfmPUGHPt3
    VHEJvg4v4QamXoqR
    UbPx2bGpQ3rJLJPO

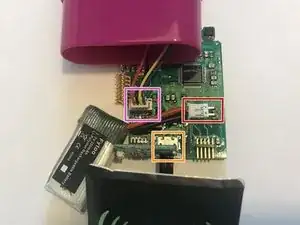

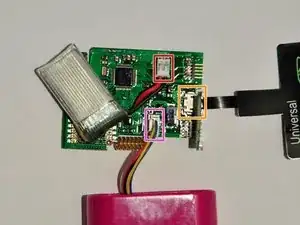

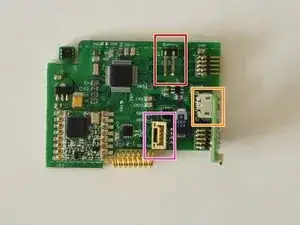

    • The soil sensor, battery and wireless charger all need to be connected to the PCB.

    • Battery

    • Make sure to connect the red wire to the plus (+) side as marked on the PCB. In this photo, the positive side is on the left.

    • Wireless charger

    • Soil sensor

    • When connecting the soil sensor and the PCB, you should hear a *click*.

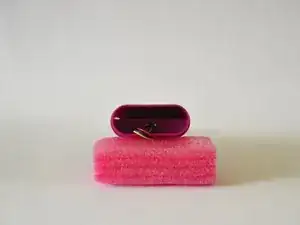

  4. BJyhLraq5ds5LKwb
    BJyhLraq5ds5LKwb
    xw6PiPBW3ED5X2A4
    tqVvG3D3RAEUJyRT

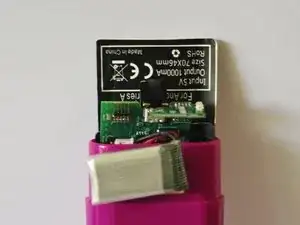

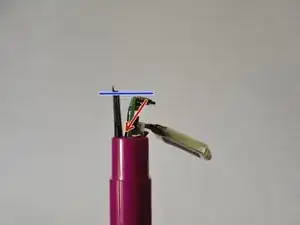

    • The PCB and the wireless charger are inserted into the deep pocket of the soil sensor.

    • Make sure that the Wireless Charger logo is facing towards the outside of the case.

    • Assembly is easiest when the PCB is inserted at a slight angle.

    • Push the wireless charged in behind the PCB.

    • The PCB and wireless charger should be at the same height, but not inserted all the way.

  5. tlbR5C2EcGR6Wegy
    tlbR5C2EcGR6Wegy
    IyPbXCBZtCCujkJA
    TaqQ1tyXyoysAEtc

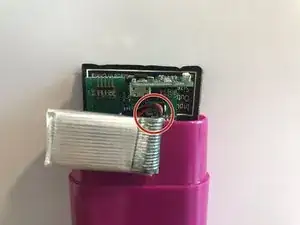

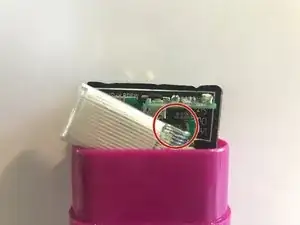

    • The battery should be placed in front of the PCB. This is easiest when diagonally inserted.

    • The battery wires are in the upper righthand corner.

  6. uEZom2IIXKVMUKUQ
    uEZom2IIXKVMUKUQ
    oWVmAOLBXFCrWRu6
    vf2dYGDELLlxbahG

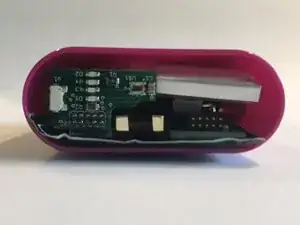

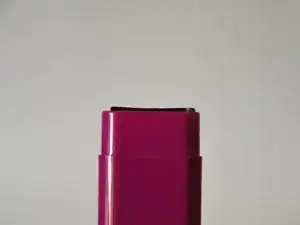

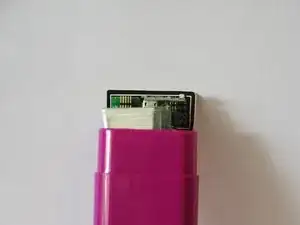

    • The components can now be pressed in all the way.

    • The PCB must be below the edge of the soil sensor. The wireless charger is allowed to stick out a little bit.

  7. qSMj2GeAToqKdGdZ
    qSMj2GeAToqKdGdZ
    VsXVwgutQLSxfT1L

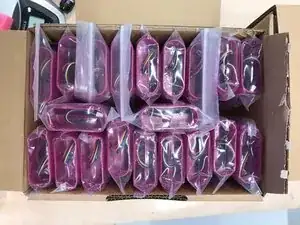

    • Put the assembled Soil Pro Mini back in the bag.

    • Place 20 assembled Soil Pro Minis back in the box.

    • There shoud be two rows of nine sensors in the box. Two sensors can be placed between the rows.
