How to Clean The Exit Needle of the Keurig B60

Written By: Jake Wynn
  • Comments: 4
How to Clean The Exit Needle of the Keurig B60

Difficulty

Easy

Steps

5

Time Required

5 minutes

Introduction

The needle that punctures the K-Cup beverage canister can sometimes become clogged with coffee particles. Take caution as this needle is very sharp and can cut skin.

  1. DDKJYNdBM4wUXxYI

    • Lift Handle to open Lid

  2. jiQOJxQxx3ntB3Oi
    jiQOJxQxx3ntB3Oi
    yXBAeCepKVYpRRfN
    IIHmccuWsJrNlA5s

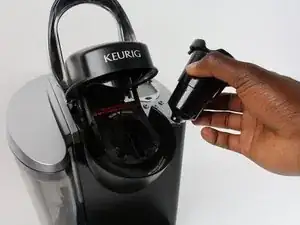

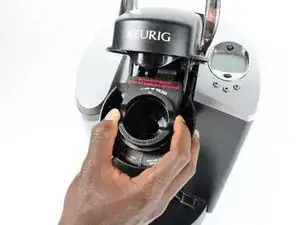

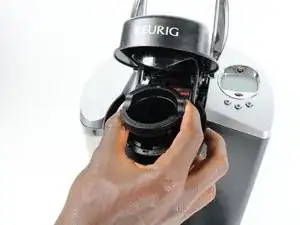

    • Remove K-Cup Pack Holder Assembly by pinching the left and right sides to release clamp. Wiggle slightly to remove

  3. FDlOgnpWsWOa5SpP
    FDlOgnpWsWOa5SpP
    hIKUSTXZonc2ywbd
    ibIrpvY1MSsT4lDa

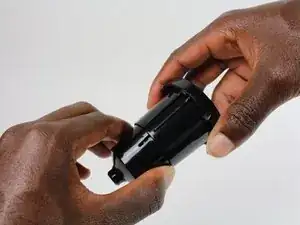

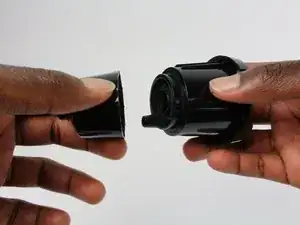

    • Pull and snap apart the funnel from the K-Cup Pack Holder (If this is the first time separating the Pack Holder Assembly, more force may be required)

  4. N56wCFiN2iAHqqBa
    N56wCFiN2iAHqqBa
    4fG1tGDyia4daq3O

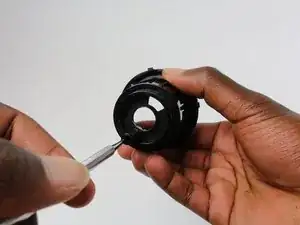

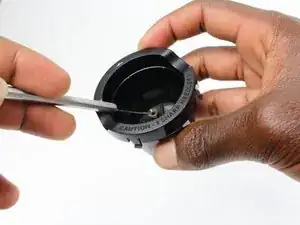

    • Insert a paperclip or other small, sharp object into the bottom of the K-Cup Pack Holder needle compartment to clear out any debris. If debris is too dry and compact, perform this step under running water to loosen the debris

    • Flip K-Cup Pack Holder and repeat

    If the exit needle is pushed up how do you put it down

    Julie Keith -

  5. idyFREyHxgT3VGCq
    idyFREyHxgT3VGCq
    LWMPstjgmCthMmNg

    • With the Lid still open, locate the Puncture Needle. Insert a paperclip or other small sharp object into the Puncture Needle Holes to remove any debris trapped inside

    Worked like a charm!

    I was focused more on the bottom needle vs the upper needle.

    Not only is the water passing through the cup now, it’s also a stronger stream.

    Thank you very much for creating this ifix guide.

    sam_robertson -

Conclusion

To reassemble your device, follow these instructions in reverse order.

Once reassembled, run the brewer once or twice with just water to cleanse the system.
