How to Replace the Batteries in a Kwikset Home Connect 620 Smart Lock

Written By: Lis Cinelli
  • Comments: 0
How to Replace the Batteries in a Kwikset Home Connect 620 Smart Lock

Difficulty

Very easy

Steps

8

Time Required

3 - 5 minutes

Introduction

Replacing the battery in a Kwikset Home Connect 620 Smart Lock is a straightforward process that most people can accomplish at home.

This process presents little opportunity for injury. Even the most novice DIY-er should have no problems following the instructions and performing the repair.

  1. alZanGHshNVkMPoh
    alZanGHshNVkMPoh
    aZ5P5QL5VsSQmWy1
    Ps5pUgREbFAtPrEZ

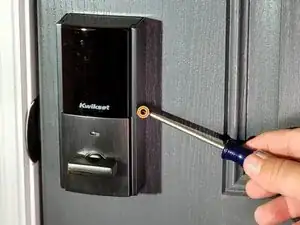

    • Remove the three (3) M3 x 6mm screws that secure the faceplate using a #1 Philips screwdriver.

    • Left side

    • Right side

    • Bottom

  2. ZUo2fXqoRIEKR2xH
    ZUo2fXqoRIEKR2xH
    p4Ex2U3WjuMRkNGd
    JUpML2RZopIGctVR

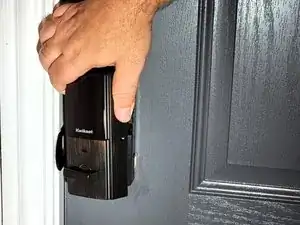

    • Remove the faceplate from the lock mechanism by pulling straight out.

  3. 5WNowhpEvcjVTUk4
    5WNowhpEvcjVTUk4
    jryckinVlxItBut5
    1v2sZlm1YDiHZObf

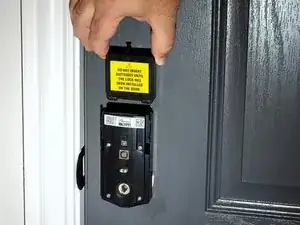

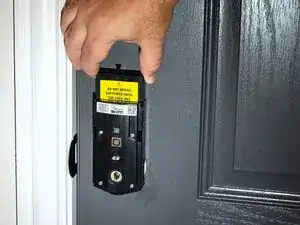

    • Remove the battery pack from the lock mechanism by pulling straight up.

  4. QuaD3u2HSrbQ6xWe
    QuaD3u2HSrbQ6xWe
    KrHiJeaUuKFbX5FK
    1jut1fLO2xBePISw

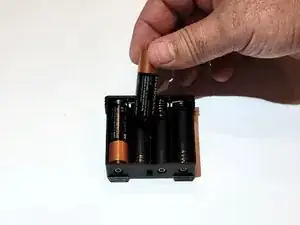

    • Remove the batteries from the battery pack.

  5. sPOnSywWRRRcLNUi
    sPOnSywWRRRcLNUi
    oH2FcYhhO2j5YC2P
    CQ6j5ckNBJImPmAX

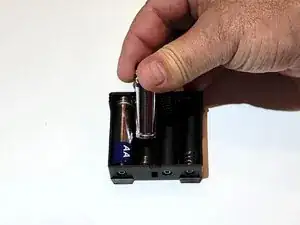

    • Insert new batteries into the battery pack.

  6. IeC1ZPxFBEDumaET
    IeC1ZPxFBEDumaET
    VSHaBiNLHmqKcftT
    FBrsK3k4eVh2JkHI

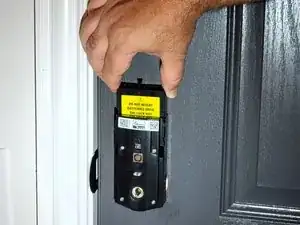

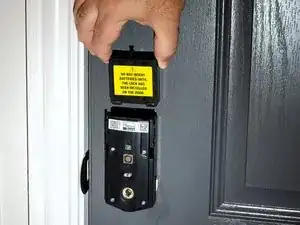

    • Insert the battery pack back into the lock mechanism by pushing straight down.

    • Make sure the label is facing outward.

  7. VDY5uieReTbMWW4m
    VDY5uieReTbMWW4m
    CnN6thVovSgcuRlA
    ILigj5DyKn5s3fDL

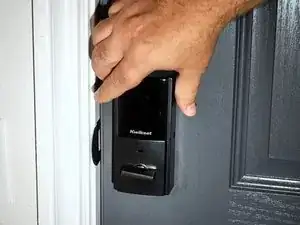

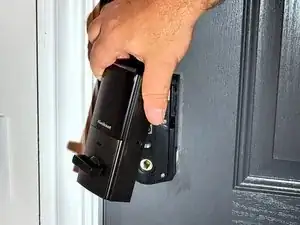

    • Reattach the faceplate to the lock mechanism by pushing straight in.

  8. G2wkTLSS3HtcZACl
    G2wkTLSS3HtcZACl
    3XEwas1kMwqPiTvh
    2fIDGfsaSWmg3myM

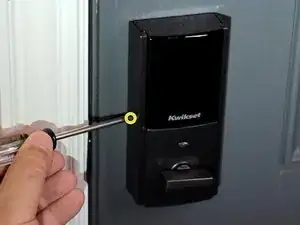

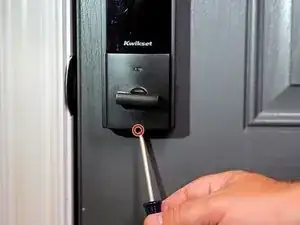

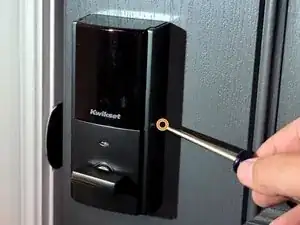

    • Reattach the three (3) M3 x 6mm screws that secure the faceplate using a #1 Philips screwdriver.

    • Bottom

    • Right side

    • Left side

Conclusion

That's it! Your Kwikset Home Connect 620 Smart Lock should now be working properly.
