Introduction
Reshaping the contact point electrodes which hold bObi's dustbin in place can resolve installation and bin latching difficulties.
Tools
-
-

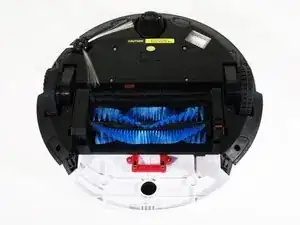

Inside bObi are two contact point electrodes, secured with a small red fastener and two screws.
-

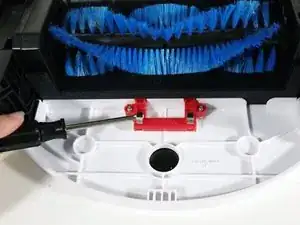

Use a screwdriver to reach underneath the electrodes and pull upward gently to bend them back to the correct shape.
-
-
-

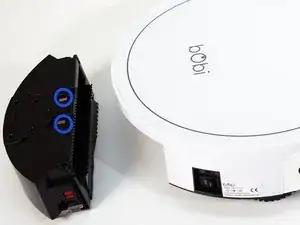

When the electrodes are fixed, slide the dustbin back into bObi. The HEPA filter side of the dustbin should face down.
-

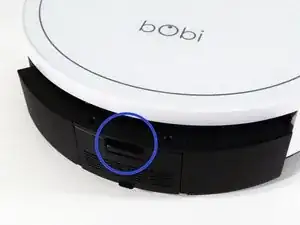

Ensure it locks in place, and the contact point electrodes will line up correctly, so bObi can resume functioning.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
