Introduction
-

                  -
            This is the Philips TV to be disassembled.
-
            The stand is actually a loudspeaker and subwoofer system
-

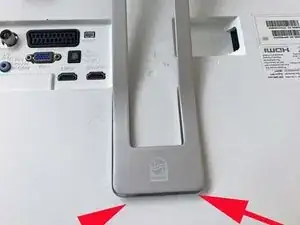

            There are no visible screws on the cover other than at the bottom of the stand which does not help to disassemble

-

-

                  -

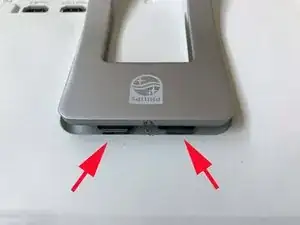

            The (large) aluminum clip is attached to the back cover and the subwoofer preventing the back cover to come off
-

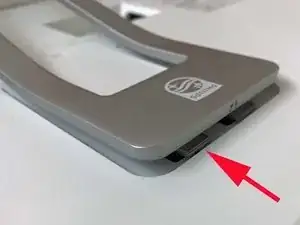

            It needs some force to move, push the aluminum clip towards the subwoofer stand in order to release the two latches holding the clip to the back cover

-

-

                  -
            Remvoved back cover with the two holes for the clip latches
-
            The back cover itself is just as usual "clicked in" the frame

-

-

                  -

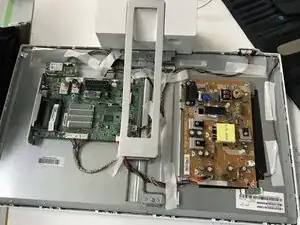

            Back cover removed giving access to the power supply and main board
-
            The subwoofer can also be detached from here

-
