Introduction
The antenna is a very important component for the radio of the Insignia NS-B2110. Antennas may snap or break, causing the radio to stop working. Removing the antenna is a fairly easy and quick fix.
Tools
-
-

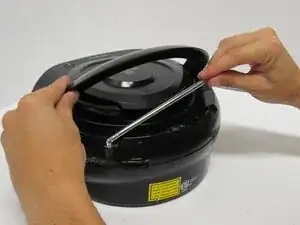

On the backside of the device, lift the plastic handle up with your hands to reveal the antenna.
-

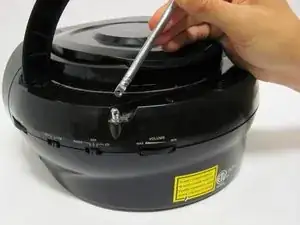

Lift the antenna to its upright position.
-
-
-
Remove one 6.0 mm Phillips #00 screw from the base of the antenna.
-
Remove the antenna from the metal bracket.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
